AGNOSIS Anti-Jamming System

GNSS anti-jamming protection for UAVs & unmanned systems

Socials
AGNOSIS Anti-Jamming System

The AGNOSIS GNSS anti-jamming system uses advanced CRPA (controlled reception pattern antenna), high dynamic range receivers, and sophisticated signal processing technology to protect both military and civilian UAVs from jamming attacks by filtering out the jamming signal and reconstructing the original satellite signal.

AGNOSIS supports multiple frequency bands and constellations simultaneously, making it a versatile and highly effective solution with global utility.

AGNOSIS AJ-430-X/R-M AGNOSIS AJ-430-X/R AGNOSIS AJ-460-X
Frequency GPS L1&GALILEO E1&QZSS&BEIDOU B1C&SBAS, GLONASS L1, BEIDOU B1I (Simultaneously) GPS L1&GALILEO E1&QZSS&BEIDOU B1C&SBAS, GLONASS L1, BEIDOU B1I (Simultaneously) GPS L1&GALILEO E1&QZSS&BEIDOU B1C&SBAS, GLONASS L1, BEIDOU B1I, GPS L2, GLONASS L2, L Band Correction Services (Simultaneously)
Jamming Suppression > 40 dB > 40 dB > 40 dB
GNSS receiver Embedded Receiver Option GPS L1, GLONASS L1 Embedded Receiver Option GPS L1, GLONASS L1 Internal Receiver Option GPS L1&GALILEO E1&QZSS&BEIDOU B1C&SBAS, GLONASS L1, BEIDOU B1I, GPS L2, GLONASS L2
Communication Embedded Receiver Option GPS L1, GLONASS L1 RS 232 – 485, Ethernet RS 232 – 485 RS 232 – 485, Ethernet
Sizes 75 x 70,5 x 24,5 mm 135 x 90 x 16 mm 150 x 150 x 24 mm
Weight 300 ± 50 gr 300 ± 50 gr < 450 gr
Power 28 V <15W 5V, 28 V <15W 28V <33W
Enviromental Conditions MIL-STD-810G MIL-STD-810G MIL-STD-810G

Other Products

Detection, tracking and neutralization of drone threats
Autonomous multi-mission USV for civilian & military applications
Synthetic aperture radar for UAV surveillance
Tactical LOS communication and control for UAVs

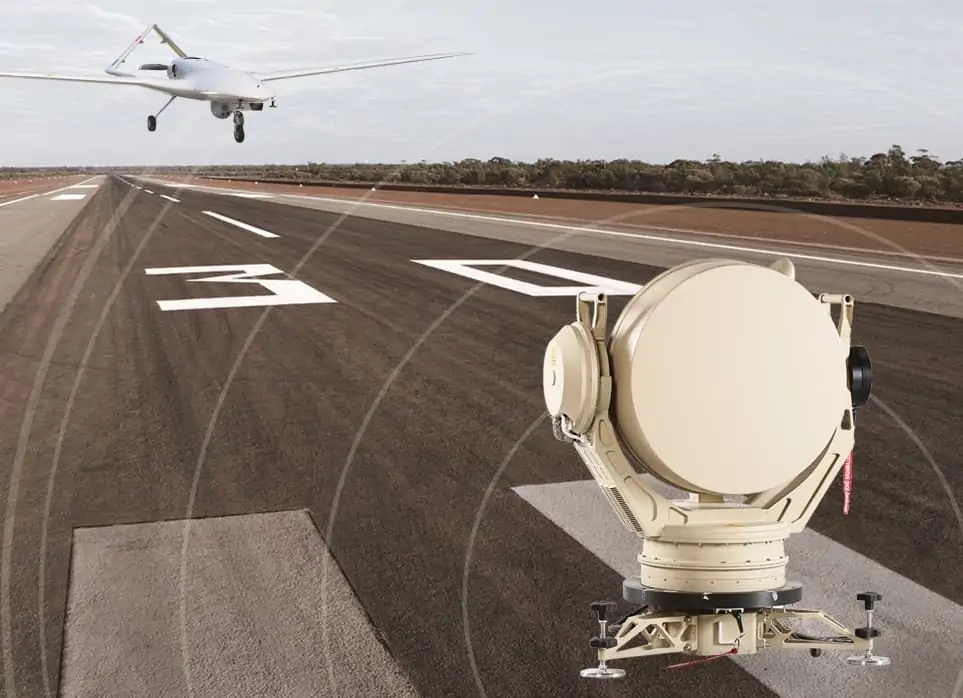

Automatic take-off and landing solution for military UAVs
Miniature high-precision UAV radar altimeter

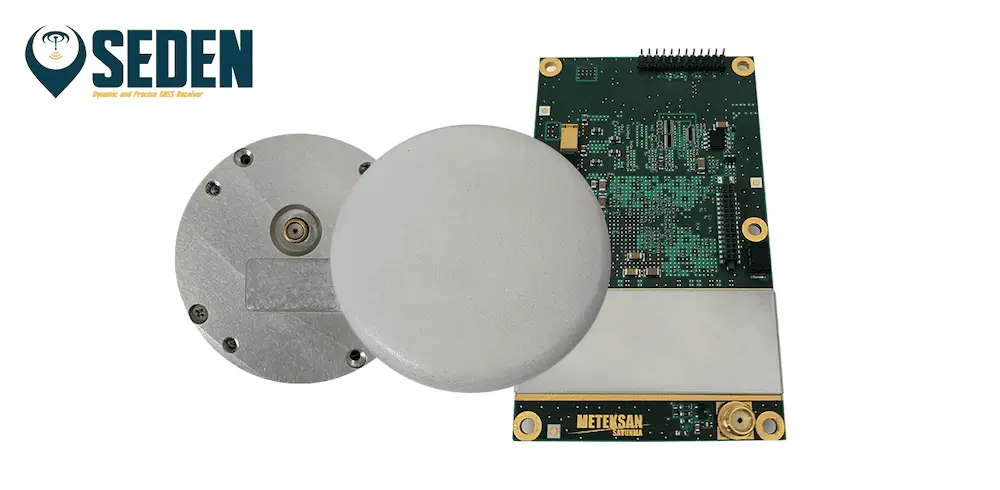

High-precision GNSS receivers & antennas
