allocortech is a leading developer of custom and COTS hardware and software solutions that enable accelerated development of innovative next-generation crewed and uncrewed vehicles in the air, land, and sea domains.
With a focus on safety-critical design, allocortech is an agile and versatile company delivering turnaround times that beat legacy commercial providers, with cost-effectiveness approaching that of consumer applications.
COTS Products
Taurus BLDC Motor Controllers
Our Taurus BLDC motor controllers utilize full four-quadrant Field Oriented Control (FOC) and Space Vector Pulse Width Modulation (SVPWM) to achieve the utmost in efficiency. All models also offer customized control loops for speed, torque, voltage, power, and other more advanced modes, as well as bi-directional communications.
The controllers support active regenerative braking, and can also be integrated into a generator system to form the basis of a hybrid electric powertrain.
Options include:

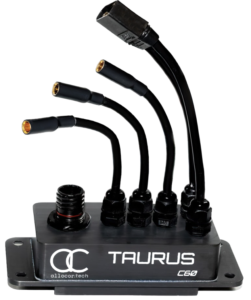

 Taurus C60IP67-rated unit Up to 12S (50.4V) output ±100A peak operation (60s) ±70A continuous operation |

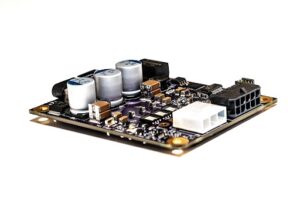

 Taurus AEBoard-level solution Up to 12S (50.4V) output ±30A peak operation (60s) ±20A continuous operation |

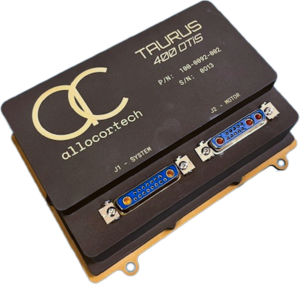

 Taurus 400 SeriesSpecially customized to each end user Up to 96S (403.2V) output ±120A peak operation (60s) ±100A continuous operation |

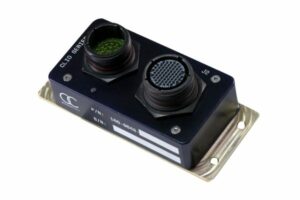

Clio Series B – Flight Computer, Power and Data Hub
Clio
is an all-in-one computation, communications, and power distribution hub designed to save harness weight and space in constrained vehicle designs. It can be utilized as a high-powered flight computer or just a low-power data and power switch, and is provided with our board support and application framework to allow developers to utilize only the functionality that they need.
Based around a STM32H7 microcontroller and Xilinx Spartan 7 FPGA, Clio runs FreeRTOS as standard with lwIP integration, and provides 2 Ethernet and 17 serial ports, 9 switched power outputs and various GPIO with an array of customizable options.
More information: Clio Series B Power & Data Hub

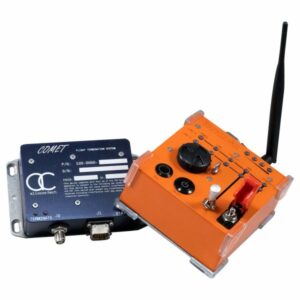

Comet E-Stop & FTS System
Comet
is a radio-linked remote-stop and flight termination system that has been rigorously designed to ensure that no single failure causes termination. The solution consists of a Vehicle unit and an Operator unit, and includes dual redundant processing and redundant termination circuits, as well as dual Ethernet or dual CAN-FD telemetry links.
One Vehicle unit can support up to two Operator units as standard in line-of-sight operation, and options are available for BVLOS (beyond visual line of sight) operation as well as support for up to eight Operator units.
More information: Comet E-Stop & FTS System

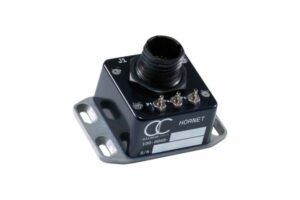

Hornet Sensor Hub
The Hornet is a versatile and low-SWaP sensor hub that offers a diverse set of functionality including differential and barometric pressure sensing, Outside Air Temperature (OAT), RTD, Angle-of-Attack (AoA), and Sideslip sensor interfaces, as well as dual magnetometers, dual accelerometers and dual gyroscopes.
Powered by an ARM Cortex-M4 processor, the Hornet delivers real-time sensor data processing and reporting. The system is provided with an open-platform C++ SDK that allows it to be configured to your exact requirements.
More information: Hornet Sensor Hub

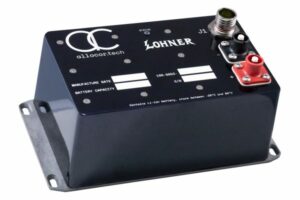

Lohner Smart Battery
Lohner is a high energy density LiPo smart battery solution designed to provide high-availability standby power for mission-critical UAVs and unmanned systems. The unit offers a full-featured monitoring and control system, as well as an externally-visible LED for at-a-glance status display.
With an 8000 mAh capacity and 18 to 25.2V output voltage, the Lohner Smart Battery is rated to deliver 50A until battery depletion, or up to 100A for 30 seconds.
More information: Lohner Smart Battery
Our Capabilities
Our exceptional engineering team boasts a wide range of expertise from avionics through to system architecture. In addition to our portfolio of COTS products, we also provide bespoke design and development services that can take your projects from concept to reality.
Our expertise includes:
Embedded Software – our SDK allows customers to easily tailor our existing software frameworks to your exact requirements, accelerating time to market.
Electronic Hardware – we can create new or repackaged hardware solutions with specific communications interfaces, protocols, and voltage levels, and are highly experienced in developing ruggedized and environmentally qualified products.
Electric Powertrains – we can provide custom battery management, power conversion, power generation, and motor control devices for almost any unmanned vehicle design.
Safety-Critical Design – our in-house safety experts review your requirements and determine the best redundancy strategies and other essential design aspects for your particular project. Our future roadmap includes certification to DO-160 and DO-178 standards.
Verification and Validation – we ensure the robustness and proper function of your products with proven testing practices and state-of-the-art software test tool chains and hardware test platforms.
