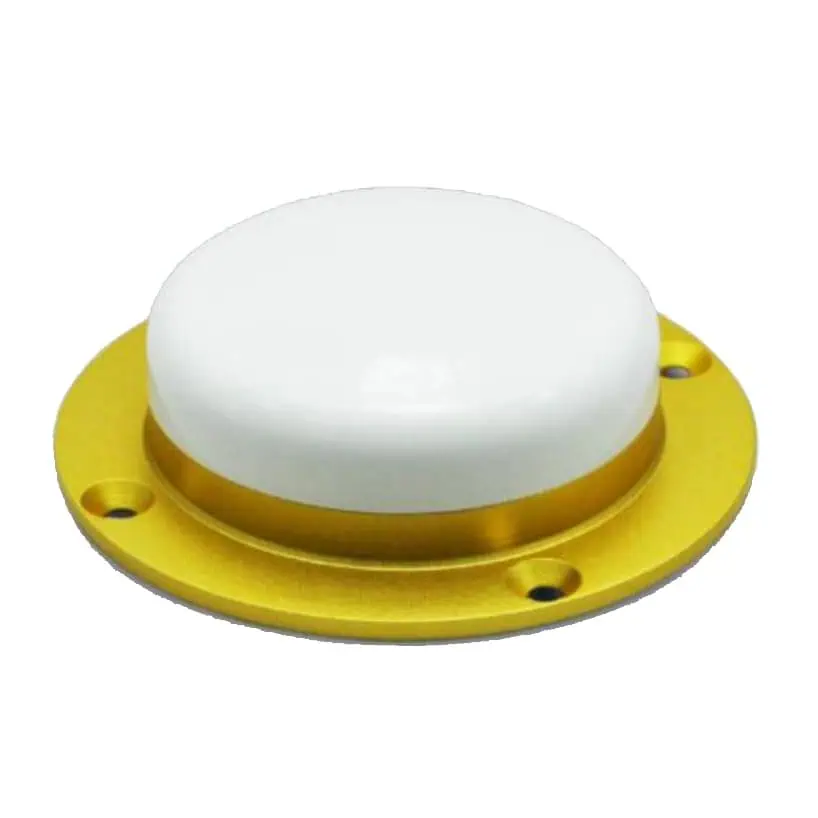

The AX4E05 is a full-constellation helical GNSS antenna that is designed for a range of drone and robotics applications including aerial photography, mapping and surveying, infrastructure inspection, and more. With high gain and a wide beamwidth, it provides excellent performance even at low elevation angles, maintaining satellite tracking and delivering stable and precise GNSS data under dynamic conditions.
The low-profile and IP67-rated antenna also features excellent anti-interference and multipath rejection capabilities, and is ideal for challenging environments with a large number of obstacles.
Specifications:
| Dimensions | 43.6 x 40.8 mm |
| Weight | 30.5g |
| Power | 3.3 – 12V, 55 mA |
| GNSS Signals |
GPS L1, L2, L5, L-Band GLONASS L1, L2 BDS B1, B2, B3 Galileo E1, E5a, E5b QZSS L1, L2, L5, L6 IRNSS L5 SBAS L1, L5 |
| Peak Gain |
1166-1278MHz: 2.6 dBi max 1559-1612MHz: 2.8 dBi max L-Band: 1.5 dBi max |
| LNA Gain | 33 ± 2 dB typical |
| LNA Noise | ≤2 dB |
