In the following article, Knight Optical, a premier provider of bespoke and stock optical components, delves into the characteristics and applications of Planoconvex lenses.
Utilizing Planoconvex Lenses in Laser communication Technologies
In the realm of optical components, the intersection of different technologies is frequently enough evident. A recent study highlights the integration of Planoconvex Lenses in a wireless optical communication system that utilizes both air and water as transmission mediums. This research addresses the challenges of alignment in wireless optical communication4, incorporating Planoconvex Lenses into its optical framework.
Understanding Planoconvex Lenses

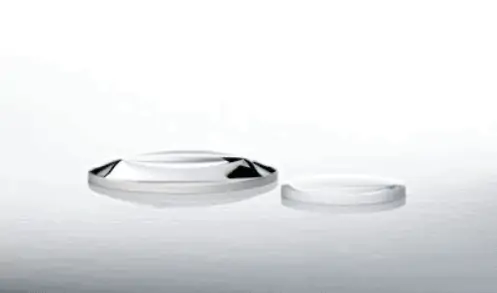

Planoconvex Lenses, as their name implies, feature one flat surface and one outwardly curved surface. with a positive focal length, they are notably effective in applications that necessitate focused, collected, or collimated light. While these lenses can produce a decent quality image near the optical axis, they may exhibit chromatic aberration. Consequently, they are frequently utilized as components within more intricate lens systems.
At Knight Optical, our planoconvex Lenses are utilized across a diverse array of sectors for various purposes, whether as part of a multi-lens assembly or as standalone units.
Common Applications of Planoconvex Lenses
Due to their light-focusing capabilities, Planoconvex Lenses are predominantly found in imaging systems, detectors, and laser-based technologies, including laser cutting equipment.
Planoconvex Lenses in Laser Manufacturing
Our custom-engineered Planoconvex Lenses are particularly well-suited for CO2 laser cutting machines. these non-contact, gas-powered lasers are gaining traction in manufacturing environments for tasks such as precision engraving and cutting of various materials. Industries such as automotive and textiles are among those that benefit from these advanced laser technologies.
In the industrial sector,Planoconvex Lenses have also been utilized in a recent experiment focused on a high-precision laser measurement system aimed at assessing straightness and parallelism1.In this study, “a planoconvex Lens was employed to collimate a laser beam and enhance the energy distribution of the diffraction effect1.”
planoconvex Lenses in Communication Technologies
Visible Light Communication (VLC)
As a notable example, in December 2020, Planoconvex Lenses were integral to a study on Visible Light Communication (VLC)—a wireless optical technology that utilizes LEDs to transmit high-speed signals through rapid light and dark fluctuations that are imperceptible to the human eye2. The research aimed to achieve “more uniform light intensity…through a combination of a compound eye lens and a sunflower Planoconvex lens2.”
Free-Space Optics (FSO) Communication Systems
Another request of Planoconvex Lenses in communication systems is highlighted in a performance analysis for a Free-Space Optics (FSO) communication system3. This study examined various lens configurations, including Biconvex and Planoconvex Lenses, to identify the optimal approach for “reducing fog scattering loss in a cost-effective visible-band FSO communication system3.” The researchers found that the double-lens “Biconvex-Planoconvex system outperformed the Planoconvex-Planoconvex system by 63.85% and the Biconvex-Biconvex system by 50.42%3.”
Planoconvex Lenses in Laser Communication Technologies
In the optical components field,the convergence of different technologies is often apparent. A recent study that utilized Planoconvex Lenses examined an optical wireless communication system that operates through air and water channels. This research tackled the “alignment issue in wireless optical communication4,” incorporating Planoconvex Lenses into its optical design.
Knight Optical’s Premium, Metrology-Validated Planoconvex Lenses
At Knight Optical, our extensive selection of Planoconvex Lenses is renowned for its extraordinary quality. Typically crafted from materials such as BK7 (or equivalent), BaK4 (or equivalent), or occasionally SF11 (or equivalent) to minimize spherical aberrations, our lenses are available in diameters ranging from 2.5mm to 100mm, with a variety of focal lengths and anti-reflective coating options. along with our stock Planoconvex Lenses, we also provide custom solutions for seamless integration into specific applications. Our custom offerings include uncoated or AR-coated lenses for ultraviolet (UV), visible (VIS), and near-infrared (NIR) telecommunications wavelengths, as well as a selection of infrared (IR) materials like Calcium Fluoride and Germanium.
Why Partner with Knight Optical for Your Needs?
Clients choose Knight Optical not only for the superior quality of our products and the capabilities of our state-of-the-art Metrology Laboratory and QA Department but also for our range of Stock Optics, which are available for next-day delivery, alongside our Custom-Made Components.
This year marks our 30th anniversary in the industry. With three decades of experience and a portfolio of esteemed global clients, we take pride in having contributed to some of the most innovative advancements in the field.
