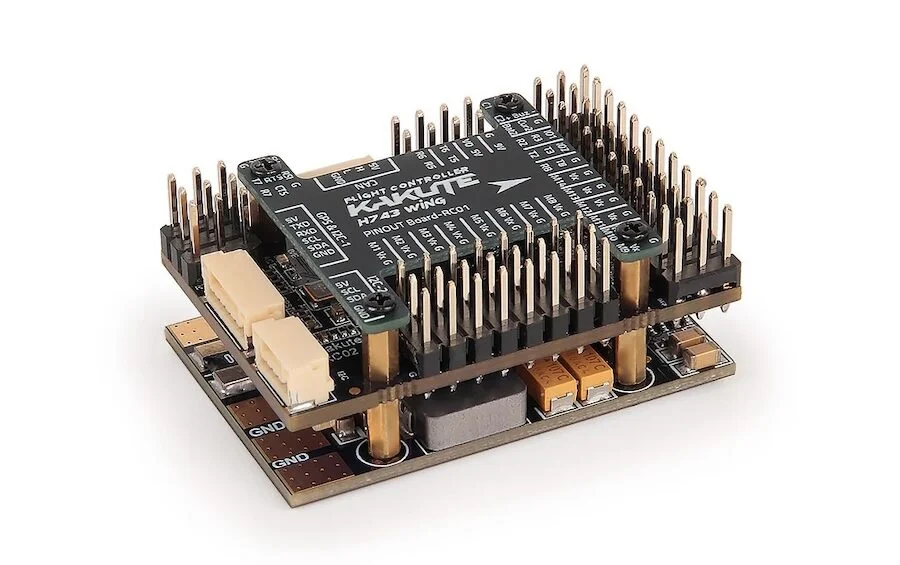

The Kakute H743 Wing is an advanced flight controller tailored for fixed-wing and VTOL (Vertical Take-Off and Landing) drones. It is powered by an Arm Cortex-M7 processor that supports ArduPilot firmware, ensuring high performance. The device is equipped with a sophisticated low-noise IMU (Inertial Measurement Unit) and offers a variety of I/O options, including UART, PWM, and I2C. Additionally, it seamlessly integrates with CAN devices and GPS modules.
This flight controller also features three built-in BEC (Battery Eliminator Circuit) outputs, providing voltages of 5V, 6V/8V, and 9V/12V. This versatility allows it to power various components such as servos, gimbals, cameras, GPS units, and airspeed sensors, among other accessories.
Key Specifications
| Dimensions | 45 x 30 x 13.5 mm |
| Weight | 28g with USB extender |
| Power Supply Range | 10-36V |
| BEC Voltage Outputs | 5V, 6V/8V, and 9V/12V |
| Processor Specifications | STM32H743 – 480 MHz, 1MB RAM, 2MB Flash |
| Integrated Sensors |
IMU: ICM-42688P (SPI3) Barometer: BMP280 (I2C4) |
