HZO is an ITAR certified provider of ultra-thin conformal coating solutions for the protection of mission-critical electronics and PCB assemblies within UAVs (unmanned aerial vehicles) and robotics.
Our robust coatings are ideal for drone OEMs and systems integrators looking to enhance the reliability and longevity of their products even under the harshest of environments, and are suitable for mass manufacturing applications. We offer a variety of options, including conformal coatings that meet ASTM and military standards.

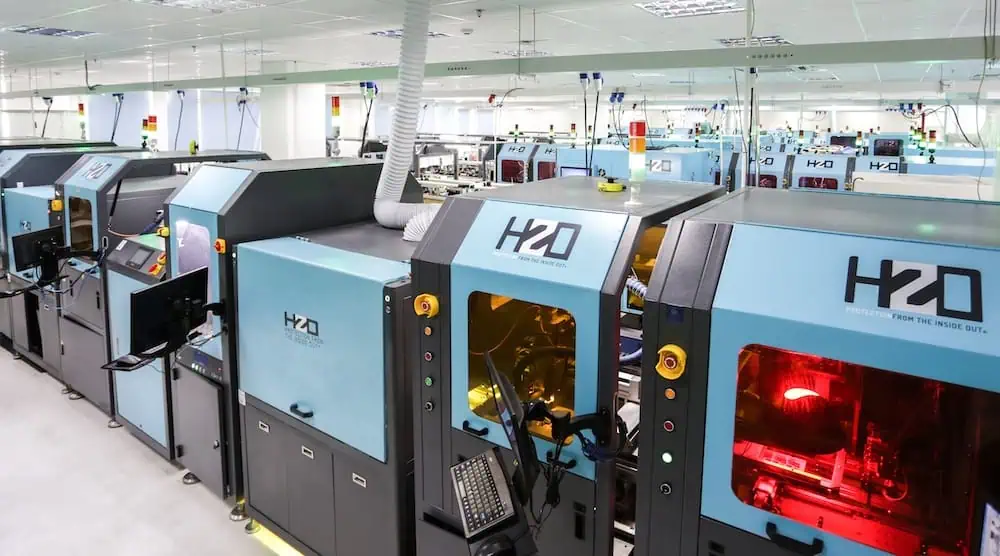

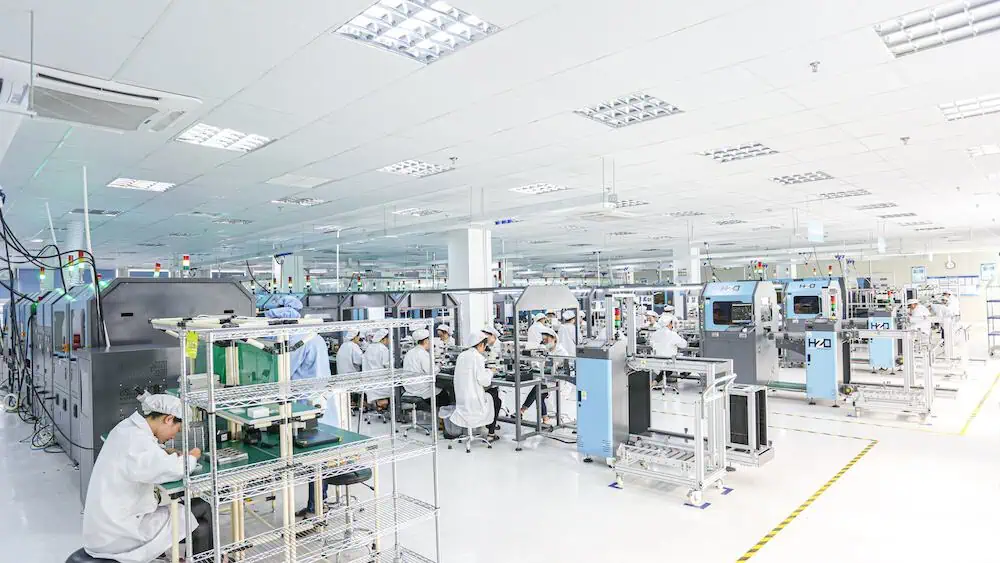

We offer complete turnkey solutions that ensure foolproof protection for your electronics, and are uniquely customized for your manufacturing and budget requirements. Our proven processes integrate expert knowledge with advanced materials science and state-of-the-art equipment, and we have the capacity to undertake production runs of any size, allowing you to scale up to quantities of up to millions of units.
Lightweight, ultra-thin conformal coatings for drones & robotics
Our thin-film coatings provide a lightweight alternative to bulkier traditional methods such as potting, with almost no added weight to the assembly. The result is highly reliable electronic systems with no impact upon SWaP (size, weight and power) budgets, payload capacities or flight times.

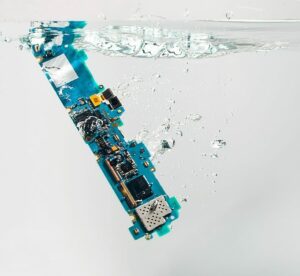

Conformal coatings protect sensitive drone and robotic systems electronics from a wide range of environmental stressors that can cause shorts, corrosion, and other faults. These factors include:
- Rain and snow
- Dust
- Salt spray
- Humidity
- Chemicals and pollution
- Extremes of temperature
HZO’s rugged hydrophobic coatings ensure enhanced resilience under even the most challenging conditions faced by industrial, aerospace and military-grade systems, allowing your UAVs and autonomous vehicles to keep operating when failure is not an option.
Learn more: Conformal coatings for drones
Coating options for ruggedized electronics
We offer a variety of lightweight and ultra-thin conformal coatings to suit a wide range of operational requirements.
HZO Guardian Series
Parylene thin-film conformal coatings

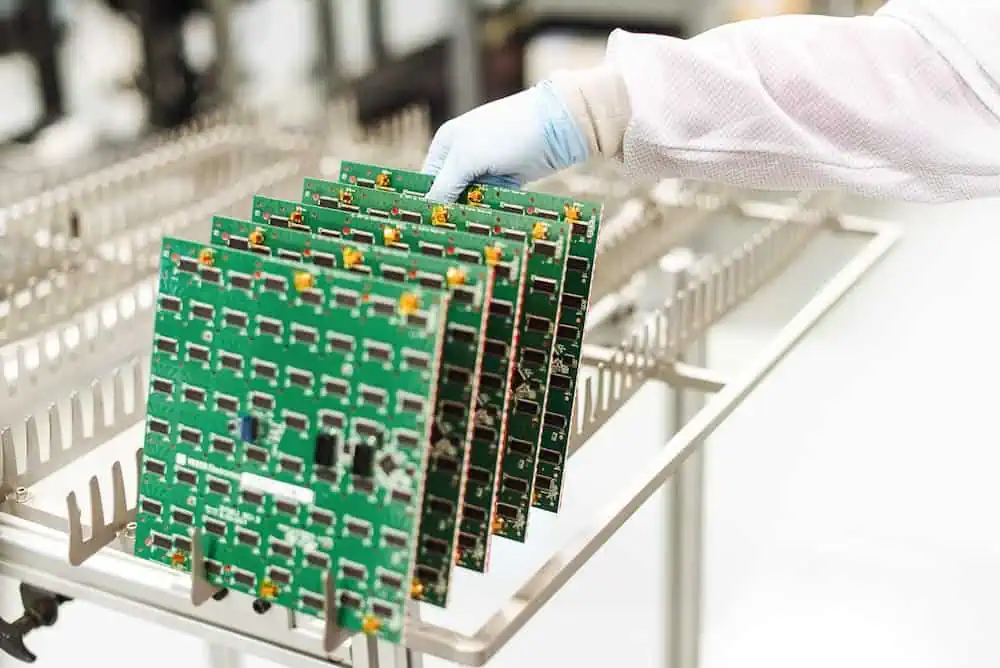

Our Guardian ultra-thin parylene coatings are applied using a chemical vapor deposition (CVD) process, resulting in a highly uniform, pinhole-free and ultra-thin protective barrier that penetrates every space and wraps around every edge. These films typically range from around 2 to 25 microns in thickness, achieving robust protection against water damage, corrosion and electrical failure in a fraction of the amounts required by conventional coatings.
Parylene offers a variety of highly desirable properties, including excellent dielectric performance, good abrasion resistance, superior chemical resistance, and low thermal expansion. It also features very low levels of outgassing, making it ideal for satellite and space applications.
Learn more: Guardian parylene thin-film conformal coatings
HZO Sentinel Series
Plasma-based nanocoating

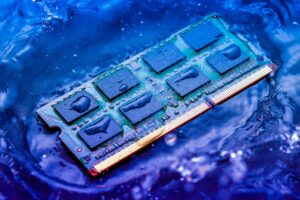

Sentinel plasma-applied nanocoatings provide protection at the molecular level, and are ideal for coating printed circuit board assemblies (PCBAs) as well as individual connectors and semiconductors.
These cost-effective hydrophobic coatings protect against a wide variety of liquids and gases while ensuring that your electronics stick to weight limits and precision thicknesses.
Learn more: Sentinel plasma-applied nanocoatings
