INF Inject is an industry-leading developer of innovative EFI (electronic fuel injection) engines specifically tailored towards commercial and industrial UAVs (unmanned aerial vehicles). Our state-of-the-art drone propulsion solutions offer significantly lower fuel consumption compared to carburetor-based engines, resulting in longer flight times, reduced running costs, and fewer emissions.
In addition to our off-the-shelf offerings, we also provide custom EFI technology integration, and can seamlessly integrate our engine control units with many leading drone flight control systems, including Ardupilot-based UAS autopilots.
Ultra-Reliable EFI Technology
Our EFI engines are the result of thousands of hours of research, development and exhaustive flight testing, and are ideal for integration into a wide variety of UAV platforms. Delivered as turnkey solutions, our engines can be provided with additional options such as alternators, starter-alternators and generators to suit specific power requirements, and can be calibrated with your ideal fuel-to-air mapping.
INF Inject’s drone engine products incorporate a range of technological advantages, including:
Advanced CAD & Manufacturing – We use the latest in computer-aided design technology to design, simulate and develop our creations. Additive manufacturing and CNC are used to create both prototype and commercially-ready components, and we can rapidly iterate and react to new requirements.
Finely-Tuned Electronic Ignition – In conjunction with Desert Aircraft Australia, we have developed specialized Capacitor Discharge Ignition (CDI) systems for our engine range. ECU and ignition mappings are finely tuned to ensure peak performance and reliability.
In-House Engine Calibration – We operate a sophisticated in-house controlled-environment engine testing cell utilizing the latest in tuning sensors, ensuring that each engine meets our exacting requirements before being delivered to the customer.
Engine Temperature Protection – Cylinder head temperatures are closely monitored, and once the permitted range is exceeded, the EFI system begins a fuel-rich injection process that utilizes the fuel as engine coolant. This minimizes the risk of permanent damage or in-flight failure.
2-Stroke EFI Engines
 INF DA 35cc |
| 2.1 kW (2.8 hp) output power 1500 – 8200 RPM 1.59kg (3.5 lb) system weight |

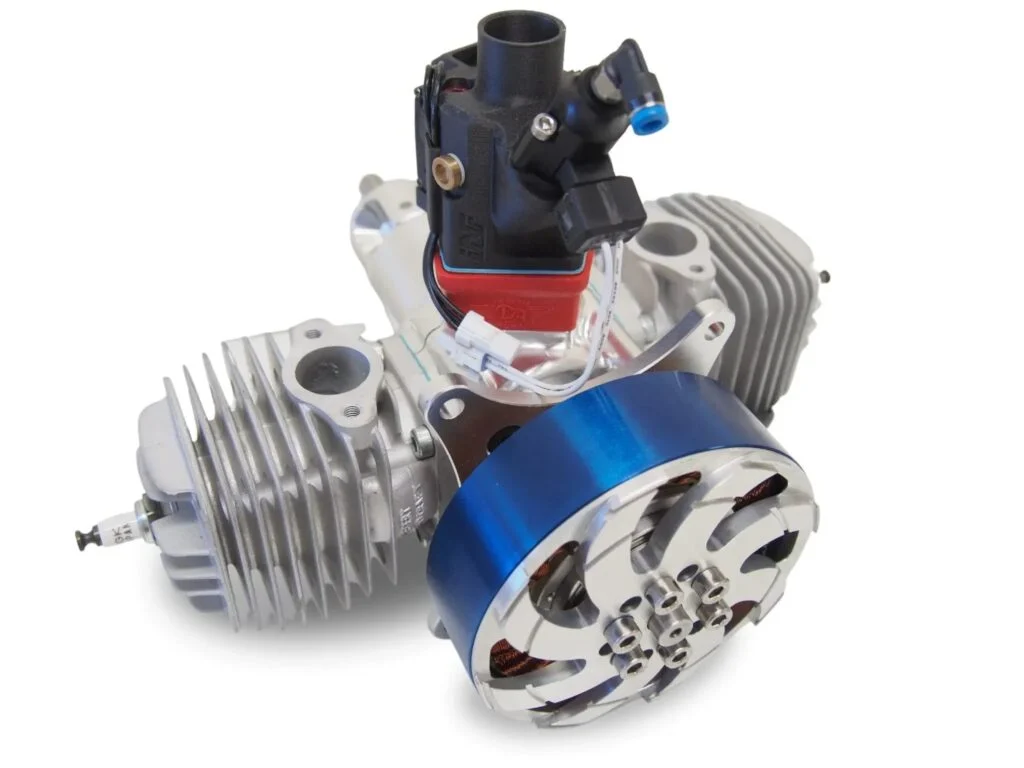

 INF DA 70cc |
| 4 kW (5 hp) output power 1750 – 8000 RPM 1.78 – 2.6kg (3.9 – 5.7lb) system weight |

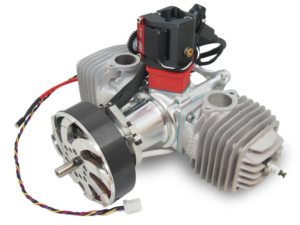

 INF DA 120cc |
| 5.6 kW (7.7 hp) output power 1200 – 7000 RPM 2.5kg (5.5 lb) system weight |
 INF DA 150cc |
| 6.7 kW (9.2 hp) output power 7000 RPM 3.7kg (8.1 lb) system weight |
 INF DA 215cc |
| 9.5 kW (13 hp) output power 5800-7000 RPM 4.98kg (10.9 lb) system weight |
4-Stroke EFI Engines

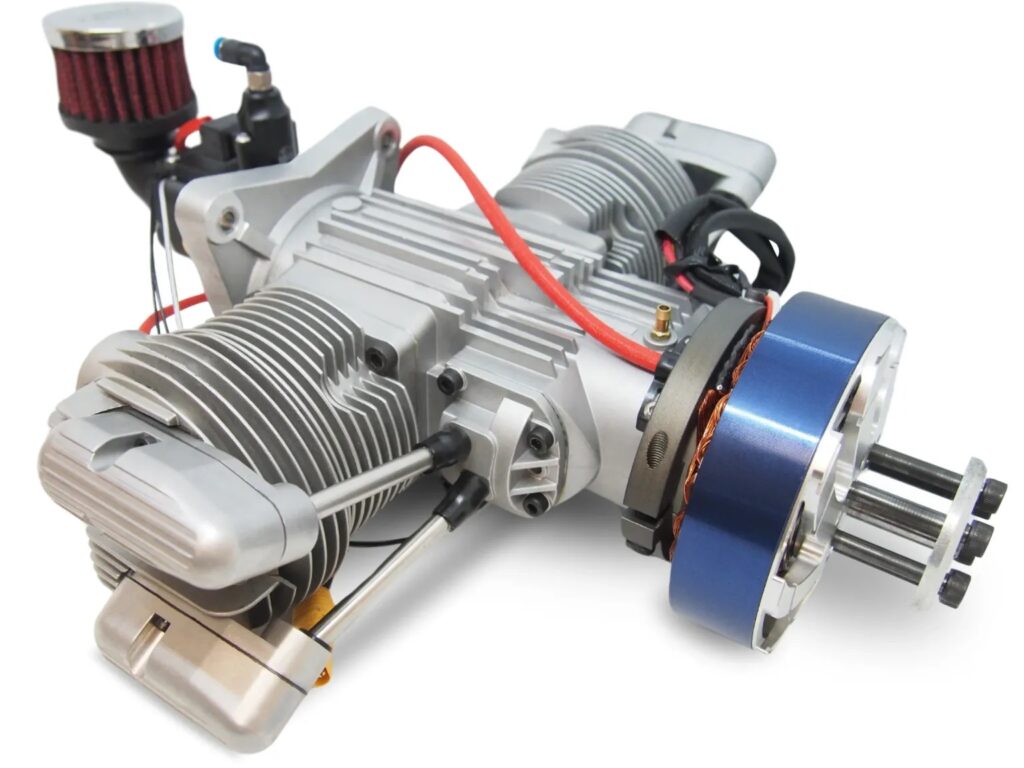

 INF Saito 120cc |
| 400W (0.54 hp) output power at 48.5v 6600 RPM 3.9 – 4.8kg (8.6 – 10.6lb) system weight |
Hybrid Generator

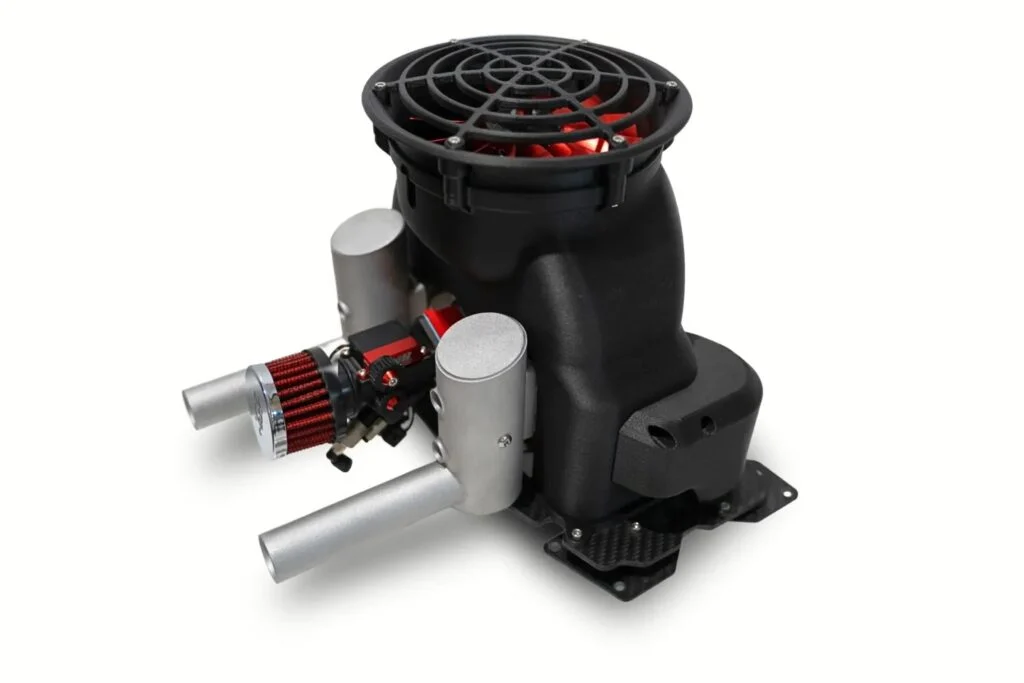

The INF iHE7 hybrid generator was created to fill a performance gap in the UAV generator market, and is based around a custom version of our DA70 EFI engine.
The unit can be utilized to provide intelligent power on demand for UAV subsystems such as avionics, and can extend mission endurance and range for applications such as surveillance, mapping and inspection.
 iHE7 Hybrid Generator |
| Output Voltage: 50V (12S) Output Power: 3500W, 70A System Weight: 4.1 kg |
Heavy Fuel UAV Engines
We are currently developing heavy fuel EFI engines designed for use in environments where flammable fuels are unsuitable – please get in touch to find out more.
