Kollmorgen is a developer of industry-leading precision motor and motion solutions for UAVs (unmanned aerial vehicles) and robotics. Designed to withstand the most demanding of operating conditions, our products help you design and create more ambitious, more capable and higher-performing systems for civilian or defense applications.
Advanced Motor Solutions for UAVs, eVTOLs & UxV
Kollmorgen’s cutting-edge and ultra-reliable motion solutions deliver the exact capabilities that you need for unmanned aerial, ground, surface and underwater vehicles, with form factor, weight and performance options to suit any use case.
For UAVs, our motors enable precision operation of flight control surfaces, EO/IR gimbals, and payload systems, with low-SWaP designs that help maximize flight time and range while delivering optimum torque and speed.
Our solutions also support the rapidly-growing advanced air mobility market, providing the control required for orientation of electric VTOL propulsion systems and multiple flight control surfaces.

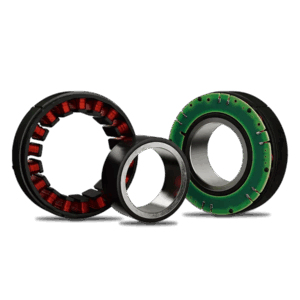

TBM2G Series
High-performance and high-torque frameless motors for drones & robotics
Born from years of advanced R&D, rigorous and demanding testing, and real-world customer feedback, our TBM2G Series of frameless motors has been precision-engineered to solve the most demanding of drone and robotics design challenges. Delivering ultra-precise motion and high levels of torque in an extremely compact electromagnetics package, these motors deliver excellent load carrying capacity and fast movement with greater efficiency and significantly lower thermal rise.
The robust motors have been designed with rugged resilience against a wide range of demanding environmental conditions, including high-pressure water jets, deep-sea submersion, ionizing radiation, and winding temperatures of up to 155°C.

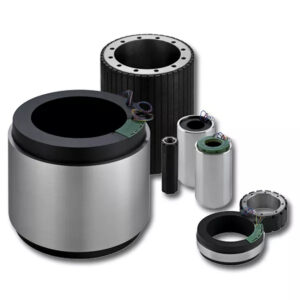

KBM Series
Highly customizable frameless motors for direct-embedding & OEM applications
The KBM Series of frameless motors has been designed to be directly embedded into robotics platforms, using existing bearings to support the rotor and eliminating coupling devices to reduce overall size and weight. With voltage options from 120 to 480 Vac, the motors feature fully encapsulated stator windings, and optional latching digital Hall effect sensors can be pre-aligned and factory-installed.
The versatile motors allow a wide variety of options and parameters to be customized to suit your specific requirements, including mechanical dimensions, leads, windings, stack lengths, torque, speed, power, smoothness, and more.

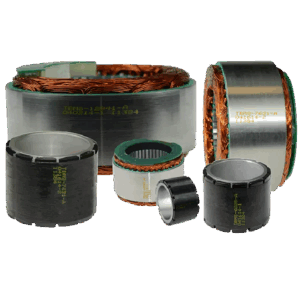

TBM Series
High-torque & low-speed frameless motors for drones & robotics
The TBM Series of direct drive brushless motors has been optimized to deliver high torque at relatively low speeds for 24 or 48V robotics applications. With compact low-cogging designs and stainless steel rotors for corrosion protection, these robust and reliable motors are intended to be directly embedded into robotics platforms, using existing bearings to support the rotor.
All standard models can be tailored to suit your specific requirements, with options including mechanical dimensions, leads, windings, stack lengths, torque, speed, power, smoothness, and more.

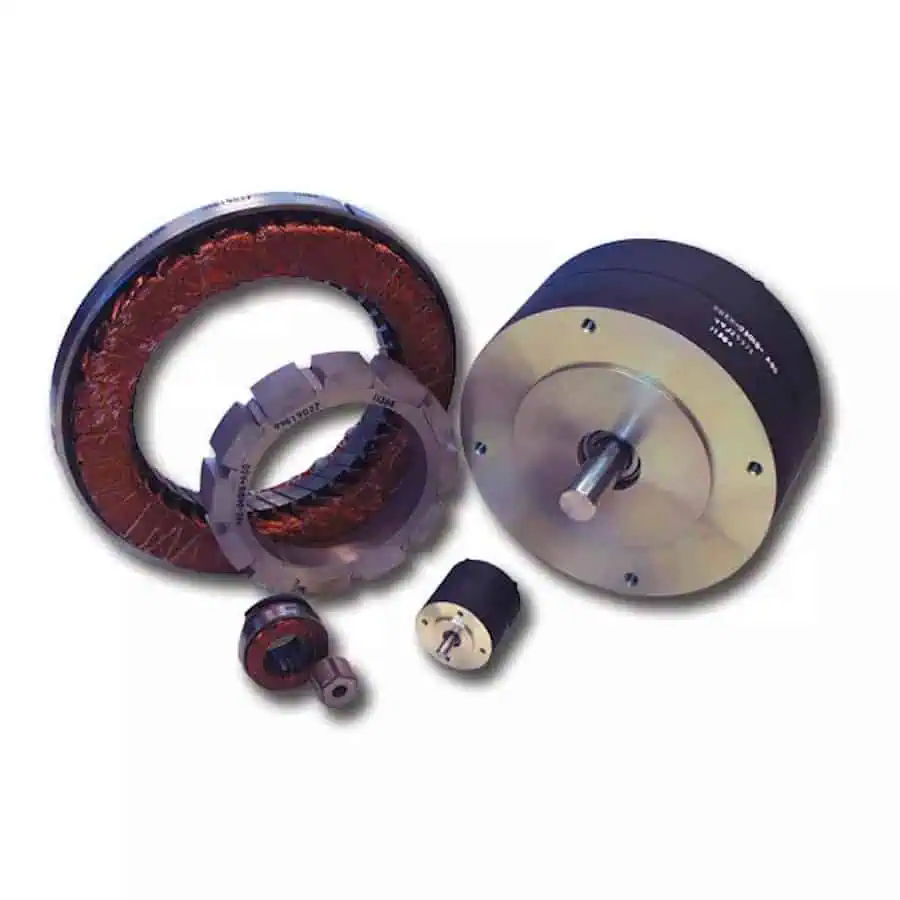

RBE Series
Proven direct-drive frameless motors with low cogging
The RBE Series of direct-drive motors has been proven over years of success in a wide variety of industries and applications, offering a variety of different sizes and torque ranges with speeds of up to 35,000 RPM.
Housed models in this series feature stainless steel shafts and can be provided with any combination of Hall sensors, encoders or resolvers as rotor position feedback devices. Frameless models utilize the load’s own shaft and bearings and can be provided with integral Hall sensors, with additional position feedback devices such as encoders or resolvers available as separate components.
Design Tools
We offer a wide range of design tools to help you select the best option from our extensive product range that perfectly suits your unique unmanned systems or robotic vehicle requirements.
Motioneering
Our Motioneering guided selection tool allows you to find the torque and speed parameters that meet your application requirements, and suggests the most suitable motor and drive pairings from our product portfolio.
Performance Curve Generator
This useful tool allows you to generate performance curves for our most popular housed and frameless servo products, with adjustable voltage and other parameters.
3D Models
We offer fully configurable 3D CAD models with more than 50,000 product options, allowing you to effectively visualize your design activities. Models can be downloaded for direct incorporation into your own CAD files.
Direct Product Selectors
If you already know your motor torque and speed requirements, or drive current and voltage, you can use our product selectors to compare suitable products and find out what best suits your needs.
