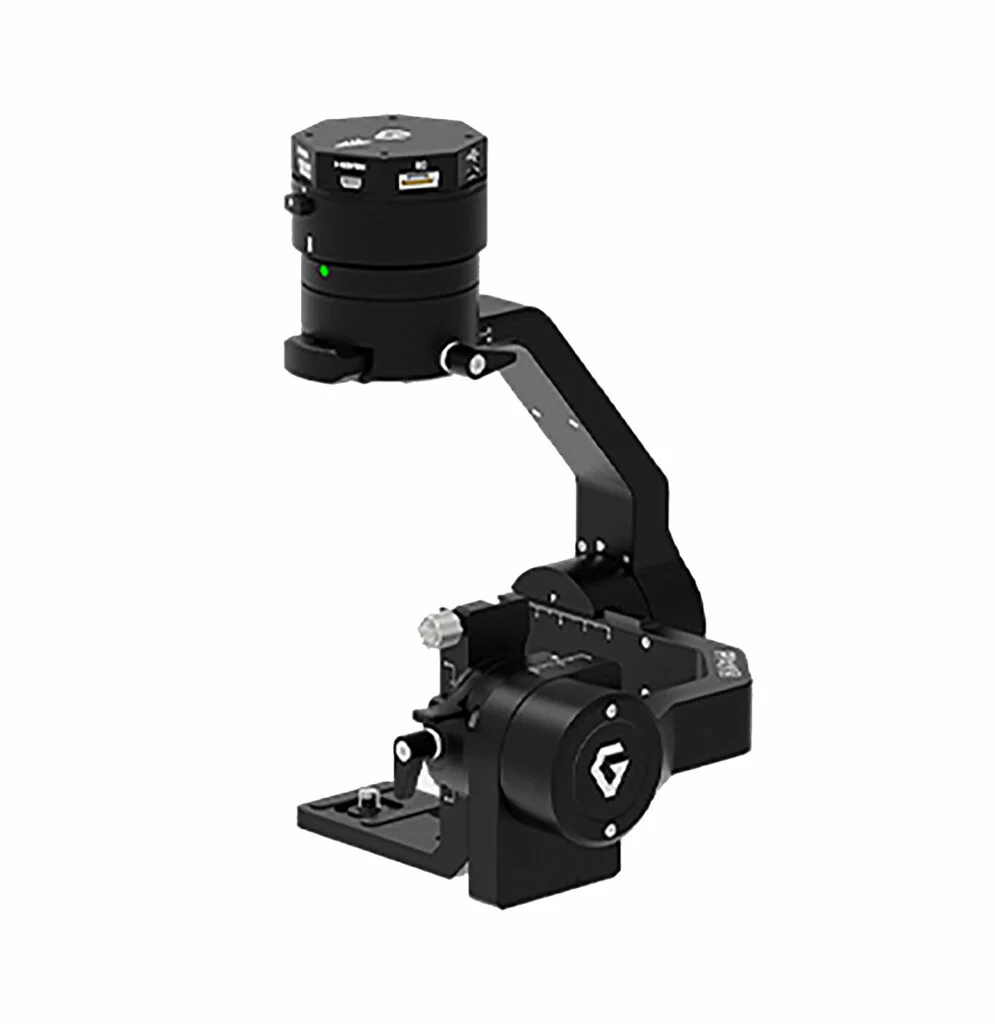

The Pixy WE is a compact and lightweight drone gimbal designed and optimized specially for the Workswell Wiris Enterprise multi-sensor camera. It can be integrated with the DJI M300 via gPort, as well as with other drone platforms using the Pixhawk or CubePilot flight controllers.
Requiring no balancing, the gimbal can be set up and deployed within seconds. The versatile unit provides a variety of I/O capabilities, including Micro USB, CAN, UART, PPM, Sbus, Spektrum, Bluetooth, and Micro HDMI.
Specifications:
The gimbal enables a variety of industrial and professional UAV (unmanned aerial vehicle) applications including thermal inspection, security, firefighting, environmental research, and more.
| Dimensions (D x W x H) | 157 x 117 x 168 mm |
| Weight | 500g |
| Input Power | 14 – 52 VDC |
| Maximum Controlled Rotation Speed |
Pan axis: 180°/s Tilt axis: 180°/s Roll axis: 180°/s |
| Mechanical Endpoint Range |
Pan axis control: +330° to -330° Tilt axis control: +135° to -45° Roll axis control: +50° to -90° |
| Controlled Rotation Range |
Pan axis control: +330° to -330° Tilt axis control: +135° to -45° Roll axis control: ± 45° |
