Nicomatic highlights the adaptability of its EMM connector series, which serves as a reliable connection solution for harsh environments, emphasizing the various configuration options designed to mitigate electromagnetic interference (EMI).
In demanding scenarios, safeguarding against EMI is crucial. This interference can disrupt signal clarity and audio quality, making shielded micro-connectors indispensable.

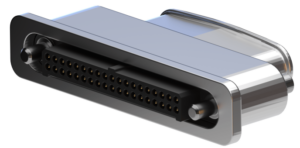

Overview of EMM Connectors
The EMM connector series from Nicomatic presents a space-efficient solution. Featuring a 1.27 mm pitch design, these connectors save 20% more space compared to customary micro-D connectors, and they can be tailored to fit specific requirements.

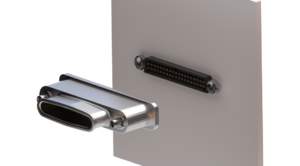

EMM Panel Backshell: Superior EMI Shielding
Nicomatic’s cutting-edge approach transforms 1.27 mm pitch connectors into fully shielded 360° panel systems, effectively safeguarding connector pairs from panel to braid.
Lightweight and compact, EMM connectors are notably suited for applications where weight is a critical factor, such as in satellites and unmanned aerial vehicles (UAVs). Their design ensures reliable conductivity even under extreme conditions.
Versatile Configuration Choices
On the panel side, options range from 4 to 60 signal contacts, available in both male and female configurations.
PCB connectors are available in straight-through or SMT contact configurations, with a straight-on cable option also offered. The backshell side includes male or female variants with a contact range of 14 to 60.
Key Performance Features
Nicomatic’s EMM connectors adhere to MIL-DTL-83513G and MIL-DTL-55302G standards.
The fastening hardware is engineered for 100 mate-unmate cycles without degradation in performance, while the connectors themselves can endure 500 plug-unplug cycles. They are rated for 20g vibration resistance and can withstand 96 hours of exposure to salt spray.
