Taisync is a leading developer of wireless data and video transmission solutions for UAVs (unmanned aerial vehicles), UGVs (unmanned ground vehicles), USVs (uncrewed surface vessels) and other robotic platforms.
Built on our τ-Sync platform, a proprietary software defined radio (SDR) architecture with custom video and data transmission algorithms, our products offer an unparalleled combination of range, reliability and bandwidth. We provide solutions that are highly suited to drone and robotics OEMs, customization of existing COTS UAV platforms, and hobbyist and FPV applications.
Wireless Datalink Modules
Our high-stability datalink technology comfortably outperforms other market-leading solutions in a variety of metrics, and can be easily integrated into a variety of platforms.
These cutting-edge modules are ideal for providing commercial or custom drones with ultra-reliable transmission of high-definition video, command and control, and telemetry. We have also solved the challenges inherent in long-distance transmission over large areas of water, and offer a number of specialized solutions for USVs.
NDAA Products Available
Taisync also offers a number of NDAA-compliant datalink modules that meet the secure data transmission needs of military and government drone and robotics platforms.

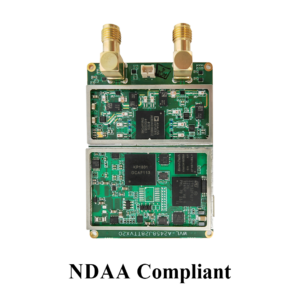

 Viulinx DUO-N |
| 2.4 / 5 Ghz 2 – 10 Mbps down, 600 kbps up 10 MHz bandwidth 10 km range 65 x 43 mm, 24g |

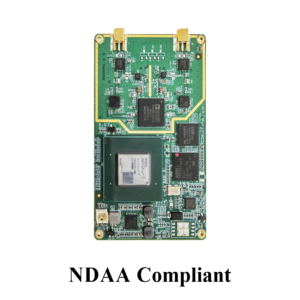

 Viulinx PRO-N |
| 2.4 Ghz 2 – 10 Mbps down, 600 kbps up 10 MHz bandwidth 15 km range 77.8 x 47.3 mm, 17g |

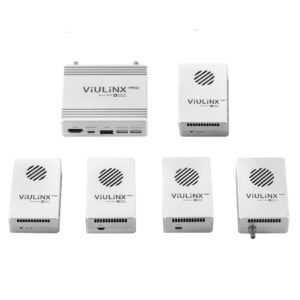

 Viulinx PRO |
| 1.4 / 2.4 / 5.8 Ghz 2 – 10 Mbps down, 600 kbps up 10 MHz bandwidth 7-15 / 15-30 / 30-50 km range 677.8 × 47.3 × 23.5mm, 97g |
 Viulinx PTMP |
| 1.4 / 2.4 / 5.8 Ghz 19 Mbps max throughput 10 / 20 MHz bandwidth 7-50 km range 77.8 × 47.3 × 23.5mm, 97g (PRO) 92.5 × 70.3 × 25mm, 198g (FX) |

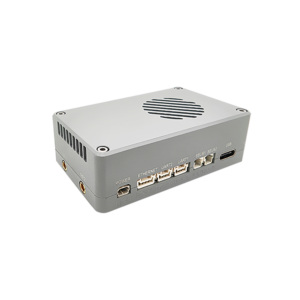

 Viulinx Quad-band 0.5W |
| 2025-2110, 2200-2290, 2300-2400, 2400-2500 Mhz 2 – 10 Mbps down, 600 kbps up 10 MHz bandwidth 23 x 71 x 40 mm, 80g |
 Viulinx Quad-band 2W |
| 2025-2110, 2200-2290, 2300-2400, 2400-2500 Mhz 15 Mbps max throughput 10 MHz bandwidth 35 x 41 x 72 mm, 110g |

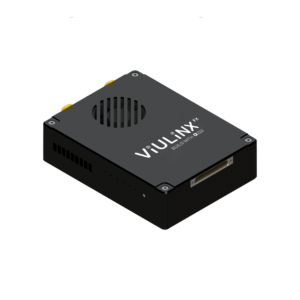

 Viulinx FX 2W |
| 1.4 Ghz 2 – 10 Mbps down, 600 kbps up 10 MHz bandwidth 50 / 100 km range 92.5 x 70.3 x 25 mm, 198g |

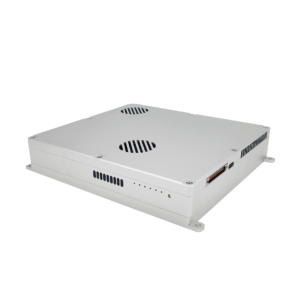

 Viulinx FX 5W |
| 1.4 Ghz 2 – 10 Mbps down, 600 kbps up 10 MHz bandwidth 150 km range 176 x 139.3 x 27.8 mm, 668g |

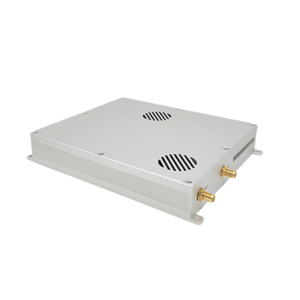

 Viulinx FX 10W |
| 1.4 Ghz 2 – 10 Mbps down, 600 kbps up 10 MHz bandwidth 200 km range 176 x 139.3 x 27.8 mm, 668g |

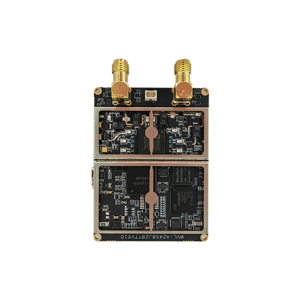

 Viulinx DUO OEM |
| 2.4 / 5 Ghz 2 – 10 Mbps down, 600 kbps up 10 MHz bandwidth 10 km range 65 x 43 mm |

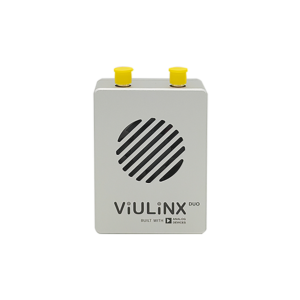

 Viulinx DUO Enclosed |
| 2.4 / 5 Ghz 2 – 10 Mbps down, 600 kbps up 10 MHz bandwidth 10 km range 47 x 72 x 21 mm, 78g |

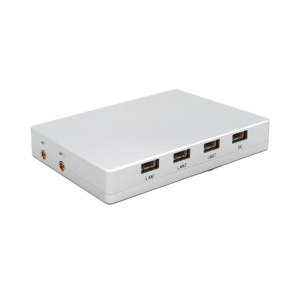

 ViuMesh Lite |
| 2412-2462 MHz 80 Mbps max throughput 5 / 10 / 20 MHz bandwidth 50 x 66 x 10 mm, 21g 42 mesh nodes max |

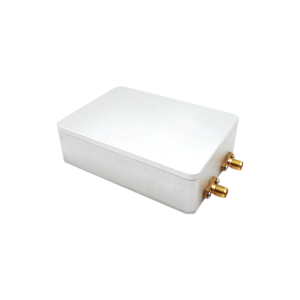

 ViuMesh Pro |
| 1428 – 1448 MHz 90 Mbps max throughput 5 / 10 / 20 MHz bandwidth 90.8 x 65 x 26.5 mm, 250g 52 mesh nodes max |

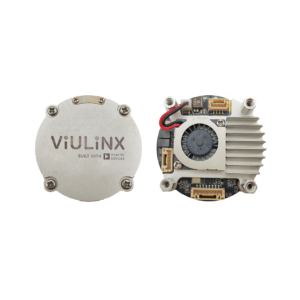

 Viulinx MINI |
| 1.4 GHz 2 – 10 Mbps down, 600 kbps up 10 MHz bandwidth 49 x 13 mm, 25g |

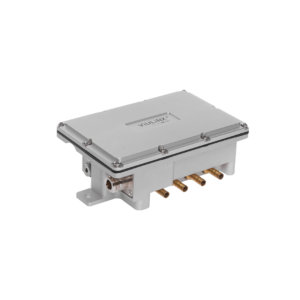

 Viulinx M |
| 1.4 GHz 2 – 10 Mbps down, 600 kbps up 10 MHz bandwidth 150 x 100 x 54 mm, 1159g |
Ground Remote Controllers
Our Ground Remote Controllers for drones and robotics feature daylight-readable multi-touch displays and include bidirectional TDD datalinks for reliable video and telemetry transmission and remote control. The lightweight Android-based units provide internal storage and incorporate ergonomic and high-quality switches and buttons.
The NDAA-compliant ViuRC5 and ViuRC7 are currently available.

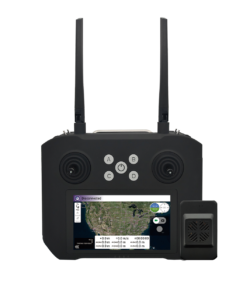

ViuRC5

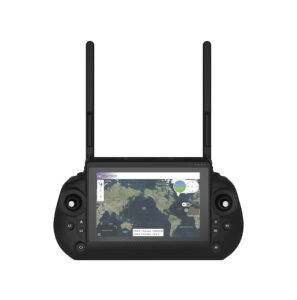

ViuRC7UAV Tracking Antennas
Our auto-tracking antenna systems ensure stable and reliable communications links for UAVs and unmanned systems operating in highly dynamic environments. They feature yaw and pitch stability enhancement, providing precise alignment and tracking both horizontally and vertically.
The systems are IP65 or IP66-rated for all-weather operation and can withstand temperatures from -25 up to +55oC.

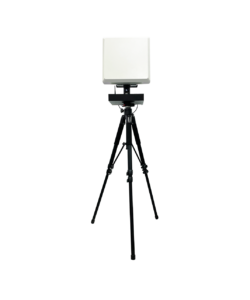

 ViuTracker G1 |
| 2.6 kg 15W power consumption Yaw stability enhancement accuracy: <0.5° Pitch stability enhancement accuracy: <0.1° Yaw rotation range: Unlimited/450° Pitch rotation range: -15 to 135° |

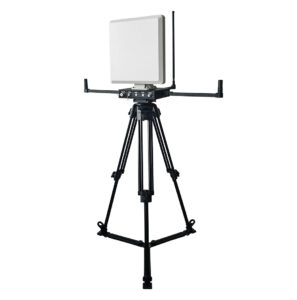

 ViuTracker G2 |
| 2.8 kg 15W power consumption Yaw stability enhancement accuracy: ±0.1° Pitch stability enhancement accuracy: ±0.1° Yaw rotation range: Unlimited/450° Pitch rotation range: 0-90° |

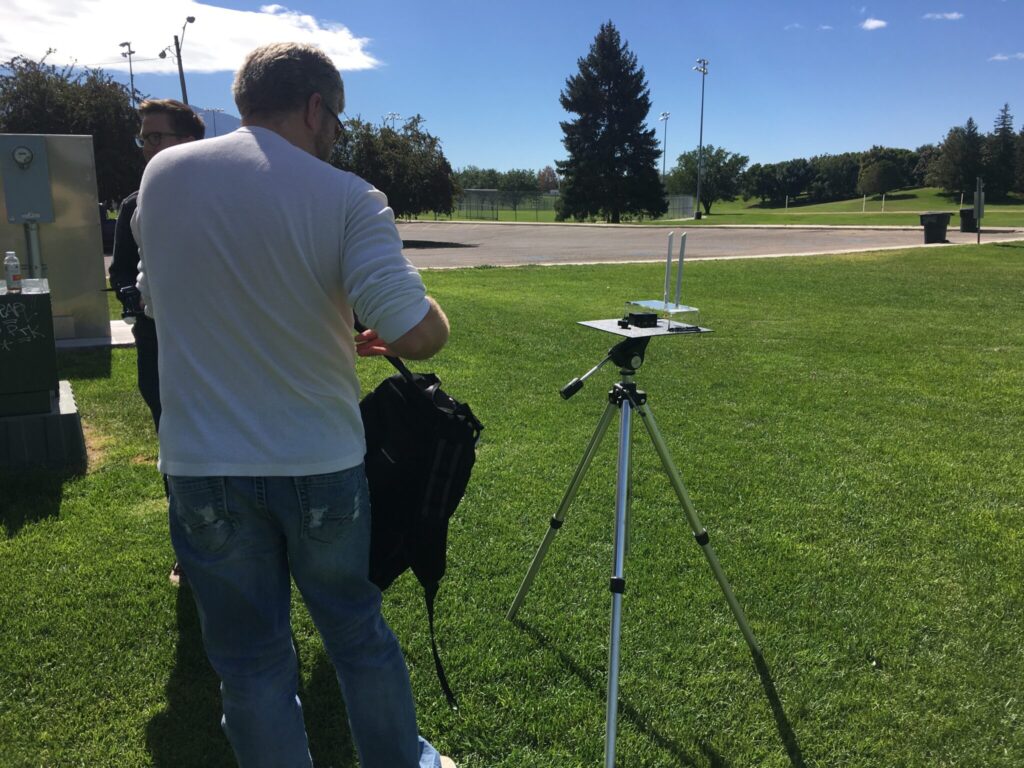

Custom Solutions
Taisync can work directly with you to develop bespoke solutions that meet your unique requirements for UAV and unmanned systems command and control, telemetry and video transmission. Our proven design process has helped a wide variety of clients from all over the world achieve mission success.
Our team of experts take care of every stage of the project lifecycle, from requirements capture through to delivery of the final PCB assemblies or modules and all required software. To find out more, please click here or get in touch with us.
