TUALCOM is a leading developer of RF, electronic warfare equipment and communications solutions for UAVs (unmanned aerial vehicles) and unmanned systems. Our state-of-the-art products, tactical data links and anti-jam devices have been utilised by major defense companies both in Turkey and around the world.
We pride ourselves on both our world-class R&D capabilities and our continuously-improving and rigorously monitored quality standards.
Anti-Jamming GPS & GNSS Systems
Our TUALAJ GPS/GNSS CRPA (controlled reception pattern antenna) anti-jam systems are the smallest in the world, providing protection against jamming, spoofing and interference in a compact and lightweight package.
With 4- and 8- antenna array options, these versatile units are ideal for both civilian and military applications, and can be installed on a wide range of UAVs, UGVs (unmanned ground vehicles), and USVs (unmanned surface vessels).
All units feature high-performance embedded GNSS receivers with PPS Ethernet and RS485 serial interfaces, as well as advanced digital beamforming algorithms for robust GPS anti-spoofing.
Four Antenna CRPA Anti-Jam Systems:
| Simultaneous Active Bands | Dimensions | Weight | Power Consumption | |

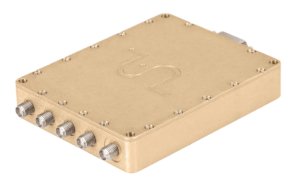

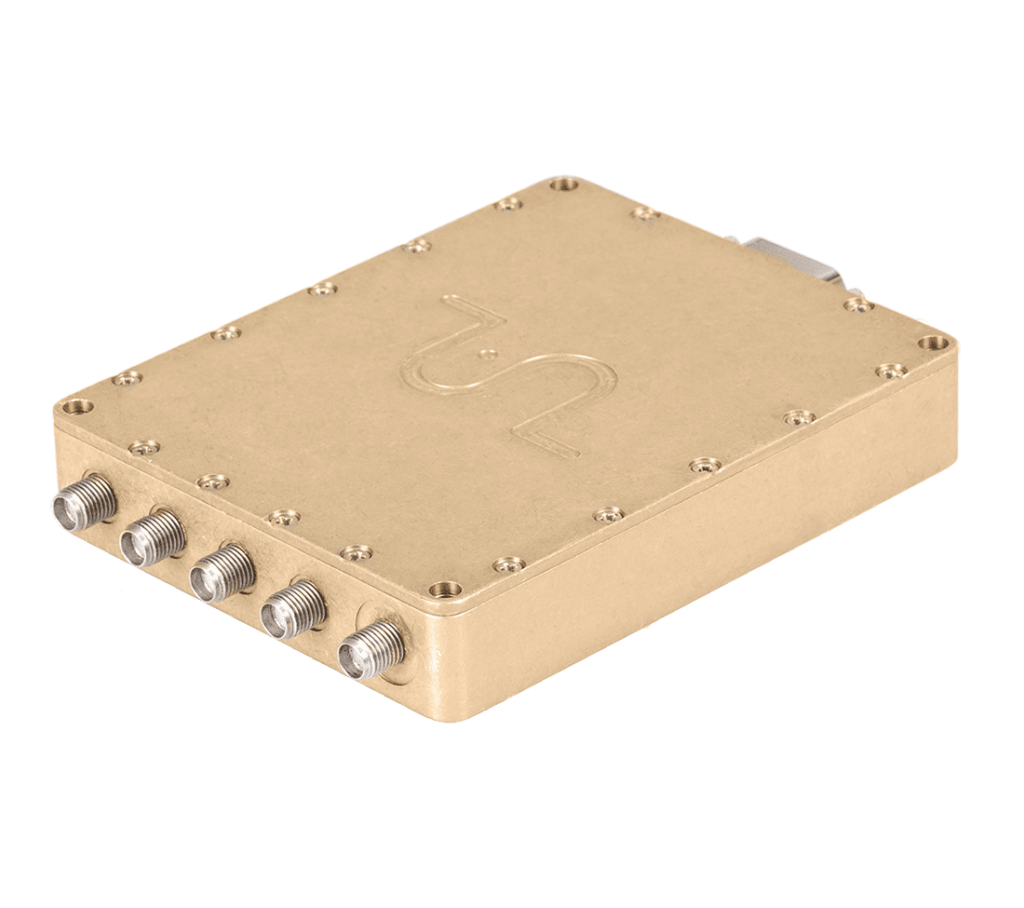

 4100 |
GPS L1 GALILEO E1 BEIDOU B1C SBAS |
10 x 8 x 1.8 cm | 240 g | < 6W |

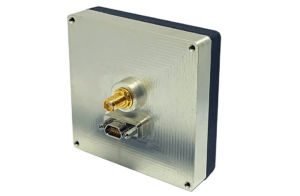

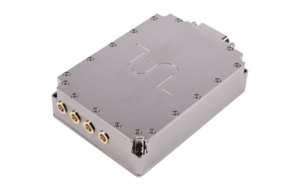

 4100 MINI |
GPS L1 GALILEO E1 BEIDOU B1C SBAS |
7.2 x 7.2 x 2.275 cm | 180 g | < 6W |

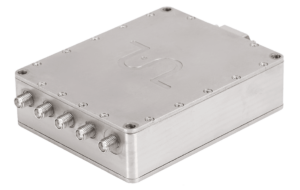

 4200 |
GPS L1 GPS L2 or GLONASS G1 GALILEO E1 BEIDOU B1C SBAS |
10 x 8 x 2.7 cm | 350 g | < 12W |

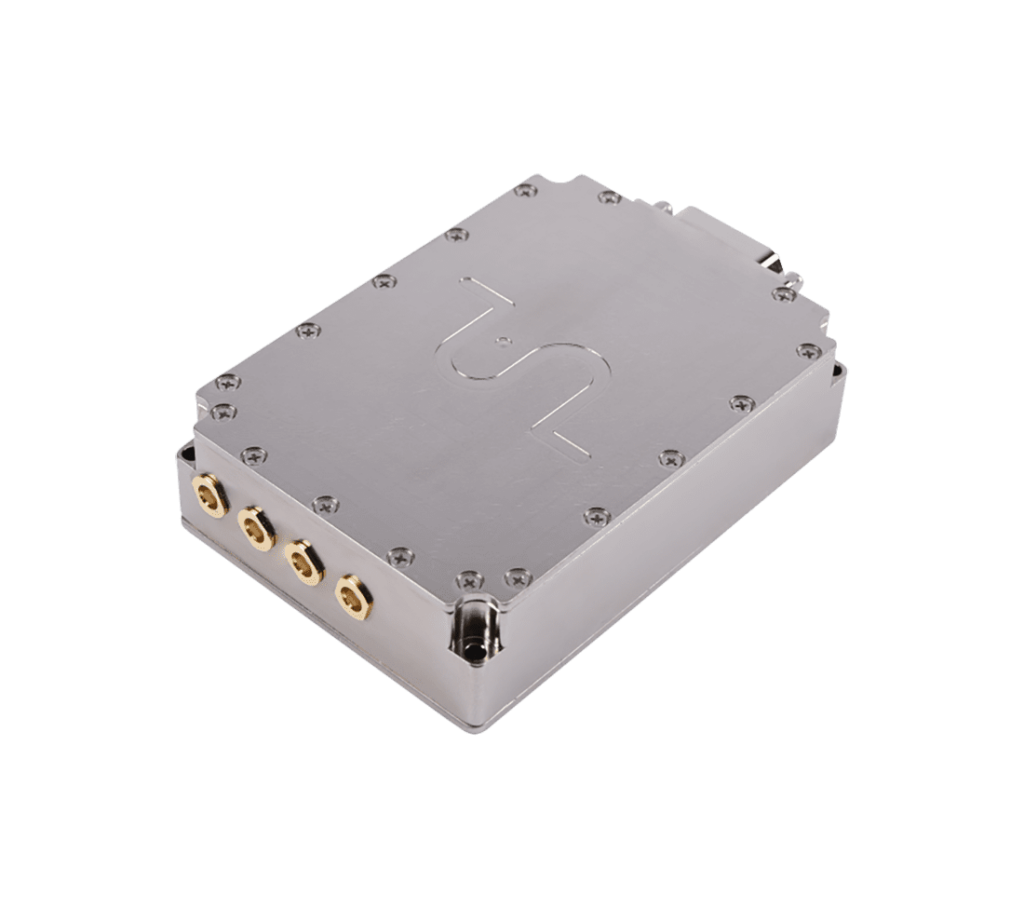

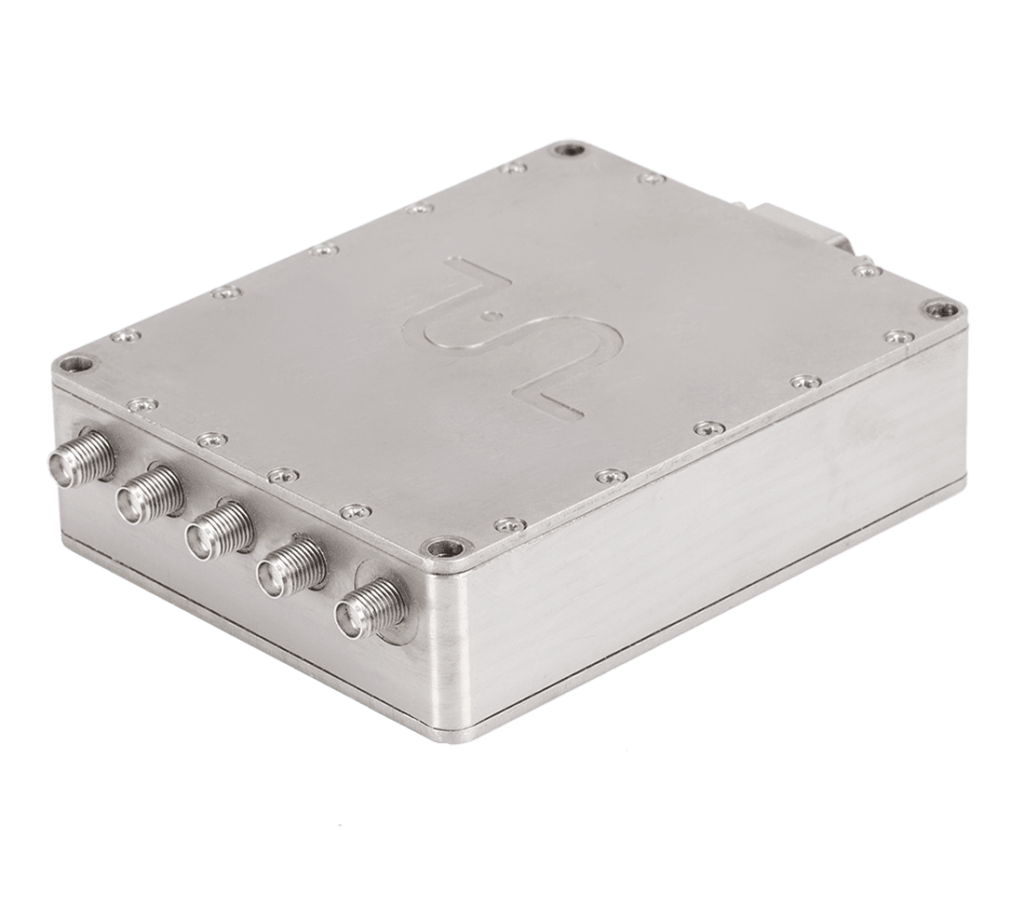

 4200 MINI |
GPS L1 GPS L2 or GLONASS G1 GALILEO E1 BEIDOU B1C SBAS |
7.9 x 5.65 x 2.1 cm | 165 g | < 12W |

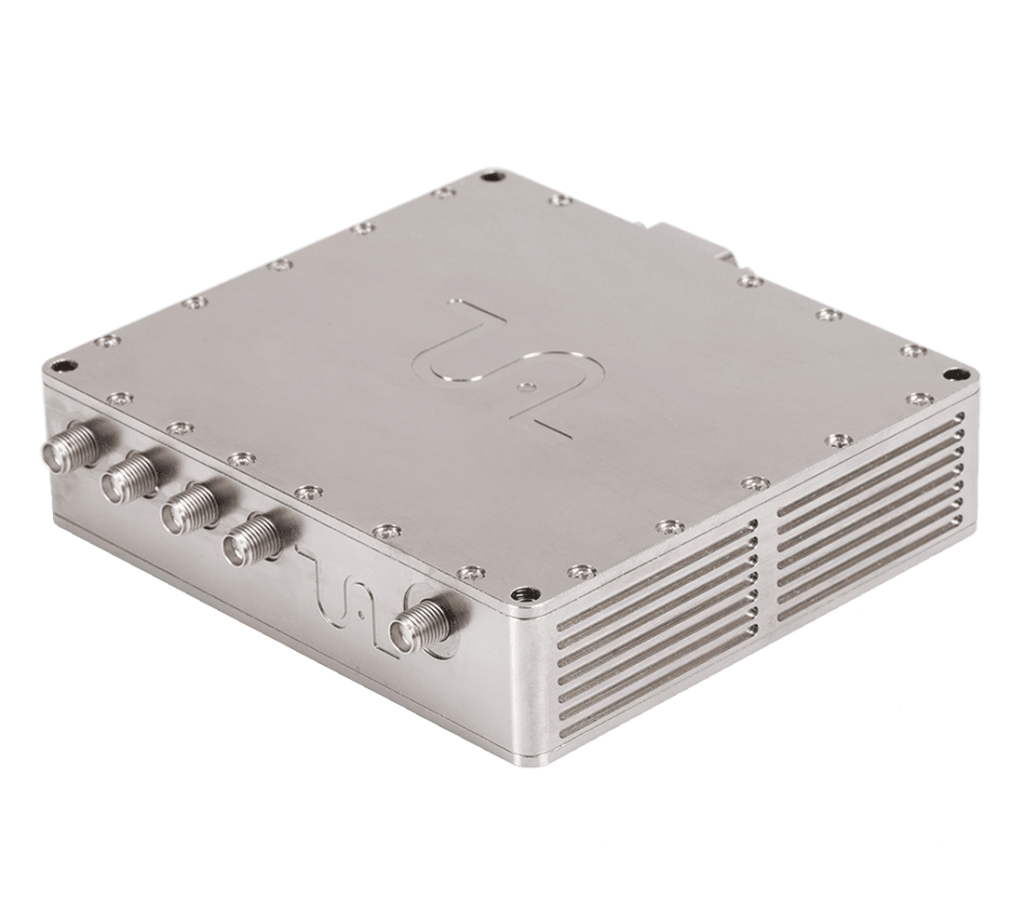

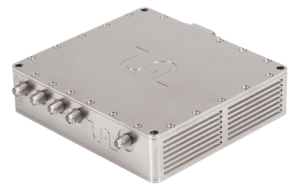

 4300 |
GPS L1 & L2 GLONASS G1 & G2 GALILEO E1 BEIDOU B1C SBAS |
11 x 10 x 2.7 cm | 460 g | < 18W |
Eight Antenna CRPA Anti-Jam Systems:
| Simultaneous Active Bands | Dimensions | Weight | Power Consumption | |

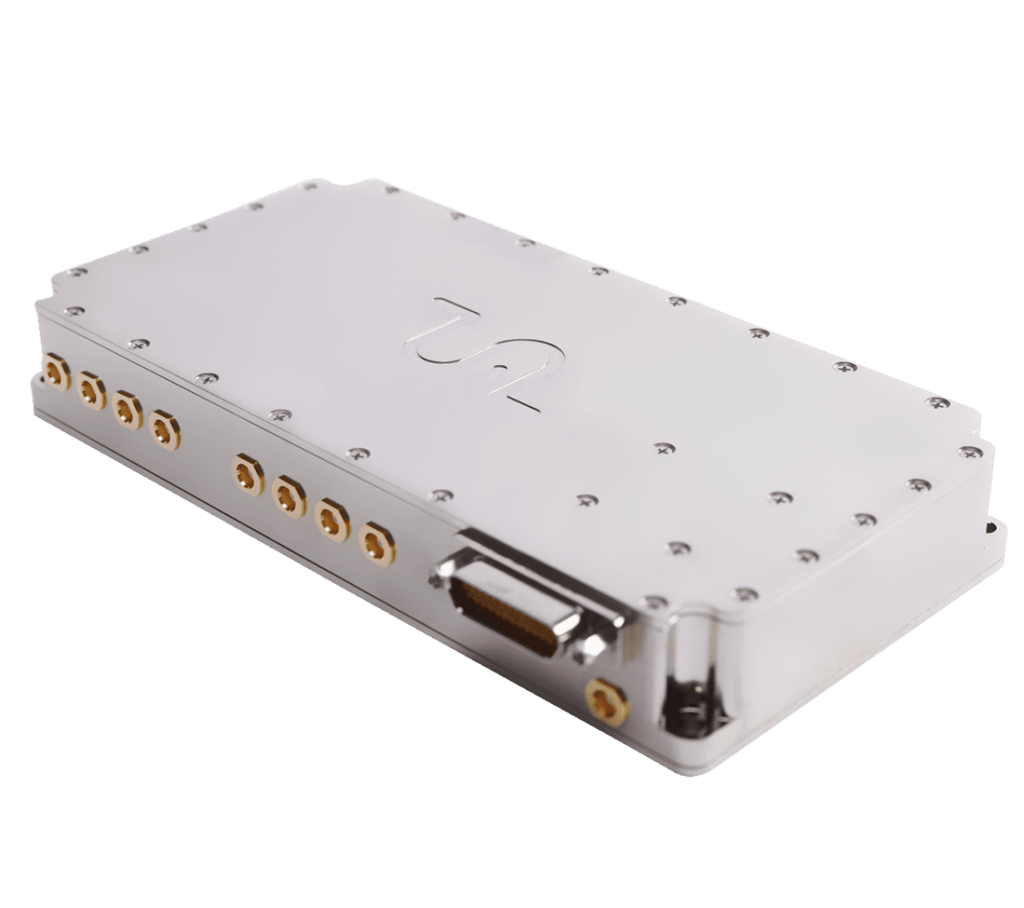

 8100 |
GPS L1 GALILEO E1 BEIDOU B1C SBAS |
7 x 13.9 x 1.9 cm | 320 g | < 24W |

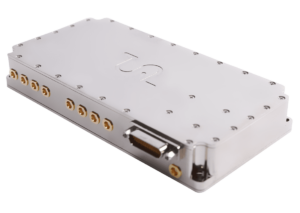

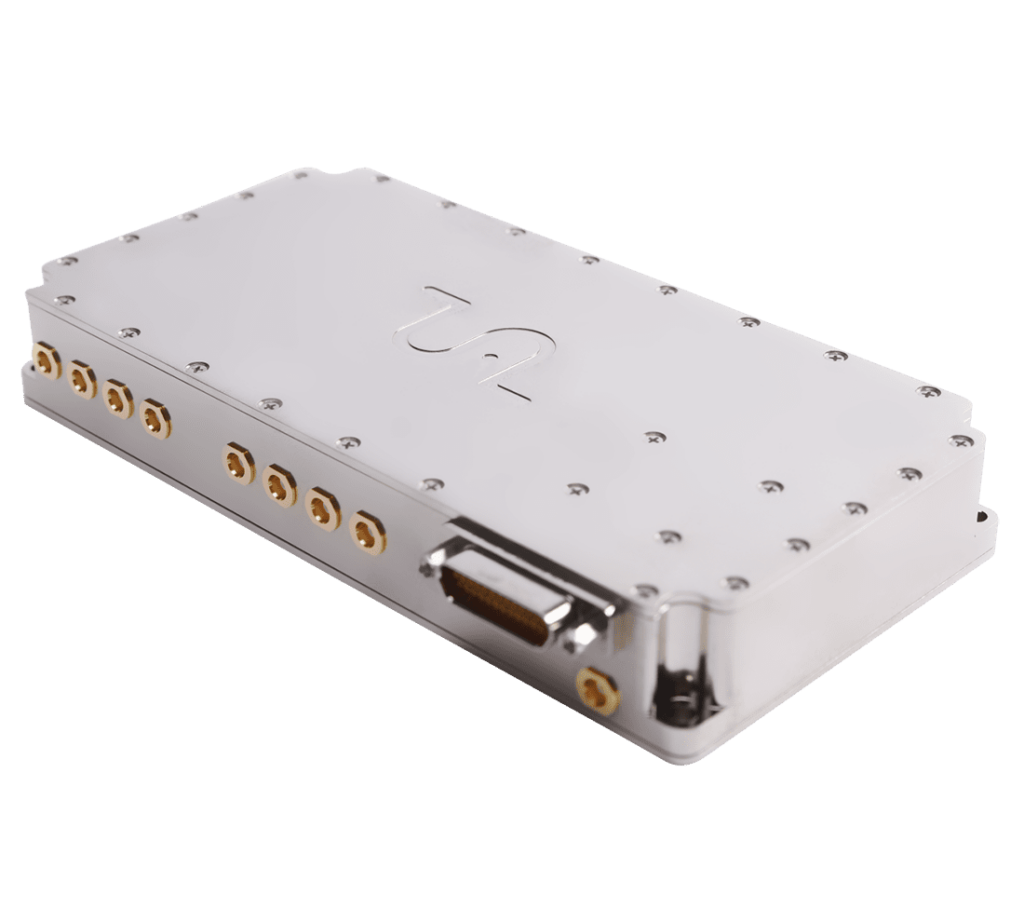

 8300 |
GPS L1 & L2 GLONASS G1 & G2 GALILEO E1 BEIDOU B1C SBAS |
7 x 13.9 x 1.9 cm | 380 g | < 6W |
Tactical Data Links for UAV

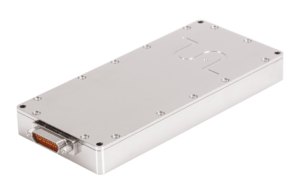

S-Band TDMA Data Link
Compact UAV data link for ISR communications
Our S-Band data link is a compact, low-power solution based on a TDMA algorithm, enabling the use of both point-point and point-multipoint communications. The system is ideal for a variety of different UAV platforms, enabling a range of tactical, mesh networking and swarm applications.
The unit incorporates an SDR (software-defined radio) modem with advanced modulation techniques for improved performance and spectrum utilization, and optional AES-256 encryption and spread spectrum techniques such as FHSS/DSSS.
The system can be used to establish ad-hoc mesh networks with robust self-healing and self-forming features, with a manually or automatically adjustable data rate of up to 10 Mbps. Users can automatically join, re-join or leave the network, and time slot reallocation allows high bandwidth to be provided to specific participants.
More information: S-Band TDMA Data Link

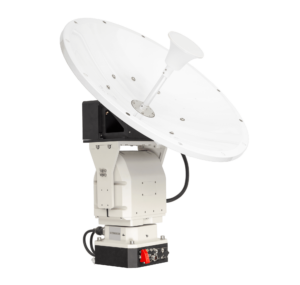

Auto-Tracking Antenna System
Long-range UAV communications antenna
The Auto-Tracking Antenna System is designed for use with our tactical data links, providing long-range communication for UAVs and drones. The ground terminal can be installed on both fixed sites and moving platforms, enabling half or full duplex bidirectional communications over a distances of up to 200 km with GPS auto-tracking functionality.
The rapidly deployable system consists of a ground data terminal, geopointing antenna controller and interface unit, pan/tilt unit, reflector antenna, and heavy-duty tripod.
More information: Auto-Tracking Antenna System
UAV & Drone Telemetry Systems
TUALRX Portable Telemetry Receiver
Telemetry system for UAV flight tests
The TUALRX portable telemetry receiver is ideal for flight testing and development of both fixed-wing and rotary UAVs. Supporting bit rates of up to 20 Mbps, the unit allows bandwidth to be pre-configured or automatically adjusted according to the bit rate.
The system includes a built-in test generator, internal test module that handles different data rates, IF (intermediate frequency) spectrum indicator, and telemetry quality indicator. Data can be transmitted to an external computer via an Ethernet interface.
More information: TUALRX Portable Telemetry Receiver

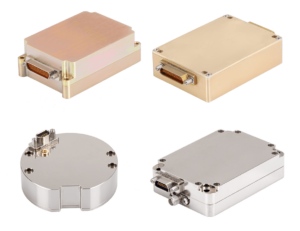

Telemetry Transmitter Modules
Compact drone telemetry transmitters
Our ultra-compact TUALCOM telemetry transmitters, available in 1W, 2W, 5W and 10W models to suit a variety of range requirements, are ideal for small UAVs. They feature configurable data rates of up to 20 Mbps in 1 kbps steps
The IRIG-106 compatible, SDR-based units can be equipped with optional data encryption, FEC (forward error correction) and randomizer. Flexible architectures also allow the telemetry systems to be easily modified for higher data rates, different form factors and electrical characteristics for specific applications.
More information: Telemetry Transmitter Modules

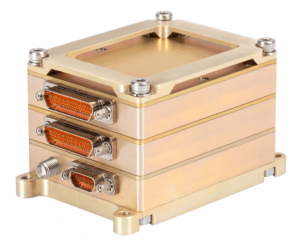

Stackable Data Acquisition and Telemetry Suite
Telemetry and data acquisition modules in a stackable configuration
We offer our data acquisition and telemetry systems as a flexible stackable solution that allows each module to be configured in a compact and identical form-factor to suit a range of UAV platforms.
Each telemetry unit is equipped with a UART for easy monitoring of collected data, and all modules are interconnected with a proprietary high-speed data bus that provides low latency and error resistant data communication.
Telemetry transmitter modules can be configured with 2W, 5W or 10W RF outputs, with PCM/FM, CPM and SOQPSK modulation. A GPS receiver module is available for positioning data and time synchronization.
Data acquisition modules available as part of the TUALCOM Stackable Suite include:
- Digital (18x RS 485, 2x Ethernet, 10x TTL, 2x RS 232)
- 16x ICP
- 16x Differential ADC (8 with digital gain and excitation voltage)
- 16x PT100/TC temperature sensors
- Customised solutions
More information: Stackable Data Acquisition and Telemetry Suite
Electronic Warfare Equipment

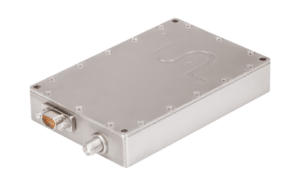

TUALARIA Active Radar Reflector
Ideal for military training missions of guided-missiles and target drones
TUALARIA is a compact active radar reflector that is ideal for incorporation into target drones for the testing of radar-guided surface-to-air, air-to-air and anti-ship missiles, as well as drone-based decoy systems.
Operating on C, X and Ku bands, the twin-antenna system amplifies and retransmits incoming signals according to the programmed radar cross-section level. It is available with RHCP or LHCP spiral antennas, and the unit’s attenuator can be easily programmed via the RS-232 interface.
More information: TUALARIA Active Radar Reflector

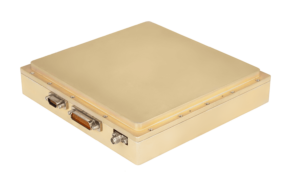

Compact DFD Receiver
Low-SWaP, high-precision digital receiver
The Compact DFD Receiver receives radar signals in the 2 GHz to 18 GHz spectrum and outputs 14-bit digital signals via an LVDS interface, with custom outputs also available. With a low SWaP footprint, the unit is ideal for small UAVs.
The system can be enhanced with switch multiplexer filters for the elimination of unwanted signals and can be stacked for multi-channel applications.
More information: Compact DFD Receiver

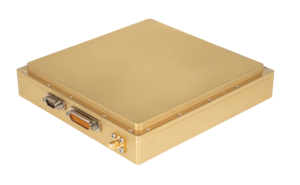

Compact IFM Receiver
Ultra-fast response PDW generation
The Compact IFM Receiver receives radar signals in the 2 GHz to 18 GHz spectrum and outputs pulse descriptor words (PDW) containing parameters such as frequency, amplitude, pulse width, and time of arrival. Outputs are transmitted via Gigabit Ethernet, and the device also includes an LVDS interface for critical settings and telemetry data.
The ultra-compact design incorporates advanced signal processing that can generate more than 2 million PDWs per second, with user-defined digital filters for enhanced versatility. The system can be enhanced with switch multiplexer filters for the elimination of unwanted signals, and can be stacked for multi-channel applications.
More information: Compact IFM Receiver
