Austars Model / Star-X VTOL-6500HP Pro VTOL UAV

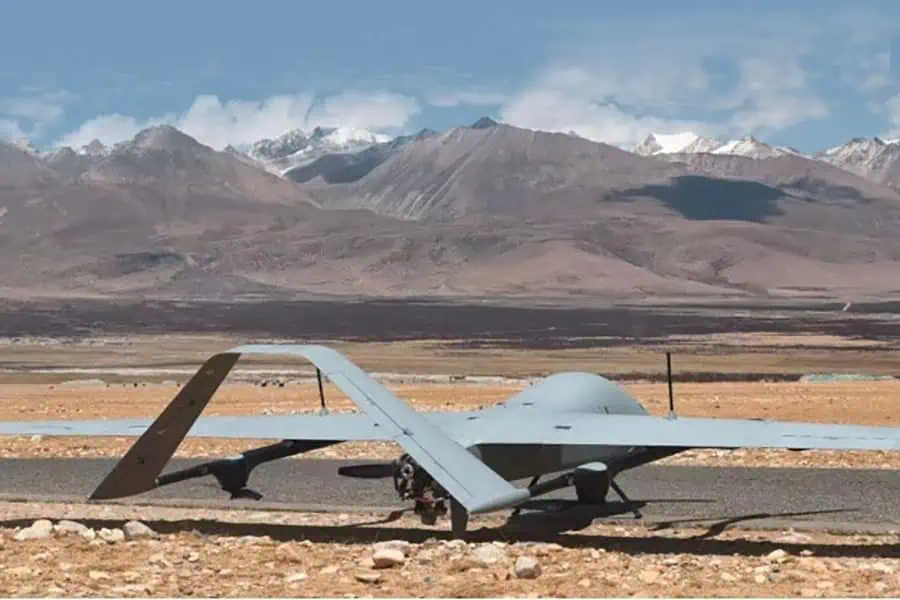

Star-X VTOL-6500HP Pro VTOL UAV

Advanced hybrid VTOL UAV with 40 kg payload capacity

Socials
Unleash the Skies with the Star-X VTOL-6500HP Pro VTOL UAV!

Introducing the Star-X VTOL-6500HP Pro: A Cutting-Edge UAV Solution

The Star-X VTOL-6500HP Pro stands out as a state-of-the-art Vertical Take-off and Landing (VTOL) unmanned aerial vehicle (UAV), designed with a robust, weather-resistant framework. This innovative aircraft can be assembled in a mere five minutes, making it ideal for deployment in challenging environmental conditions.Its modular design allows for quick adaptations, enabling it to fulfill various missions such as Intelligence, Surveillance, and Reconnaissance (ISR), search and rescue operations, and communications support.

Versatile Payload capabilities

With an impressive payload capacity of 40 kilograms, this adaptable UAV can accommodate a wide array of sensors and equipment. It supports both industrial and military-grade electro-optical/infrared (EO/IR) gimbals, oblique imaging systems, maritime surveillance pods, and satellite interaction (SATCOM) links. Additionally, the aircraft is equipped with four hardpoints, each capable of carrying 15 kilograms, allowing for the integration of specialized payloads, including precision firefighting munitions.

Power and Propulsion Options

The Star-X VTOL-6500HP Pro offers a variety of propulsion and power systems, featuring both electronic fuel injection (EFI) and heavy fuel engines ranging from 250 to 340 cc. It also includes starter-generators with multiple power output options, ensuring adaptability and efficiency for various operational needs.

Technical Specifications

Length: 3.26 meters
Wingspan: 6.5 meters
Maximum Takeoff Weight (MTOW): 160 kilograms
Maximum Payload Capacity: 40 kilograms
Speed: Cruising at 90 km/h, with a maximum speed of 150 km/h
Flight Endurance: Up to 10 hours
