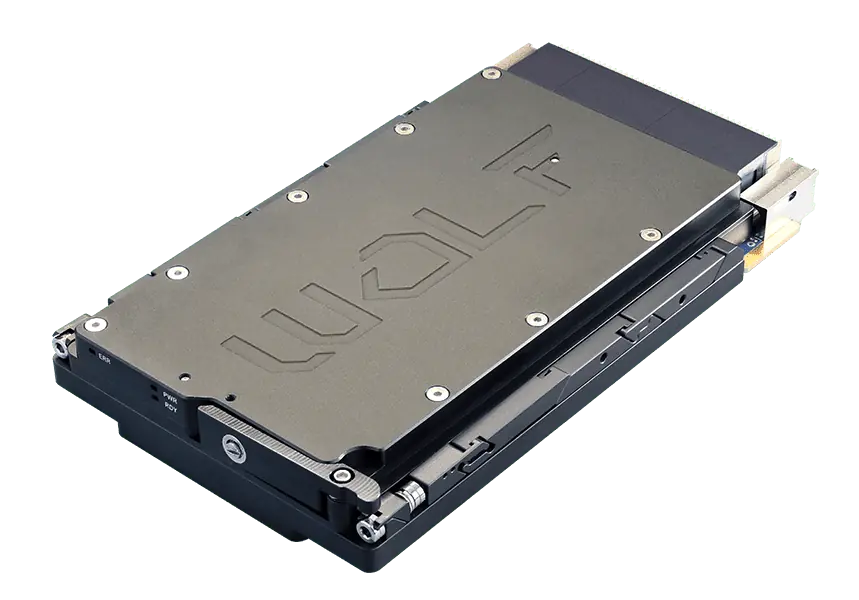

The VPX3U-A4500E-VO module includes an NVIDIA RTX™ A4500 embedded GPU in a rugged 3U VPX module. Built on the NVIDIA Ampere architecture this GPU includes CUDA cores for parallel processing, Tensor cores for dedicated AI-accelerated compute, and Ray Tracing cores for superior rendering speeds. This module also includes a configurable PCIe Gen4 switch.
The NVIDIA Ampere architecture has introduced many significant improvements to the performance and efficiency of the GPU, with more flexible CUDA FP32/INT core use, more efficient third generation Tensor cores, and second generation RT cores. The Ampere GPU fabrication uses an 8nm manufacturing processing providing significant power improvements which, along with other Ampere architecture improvements, can provide up to 154 GFLOPS/W, providing almost twice the performance per slot compared to the previous Turing generation’s 86 GFLOPS/W or the Pascal generation’s 62 GFLOPS/W.
Unlocking the best performance requires the best cooling capability. WOLF’s advanced cooling technology is designed to move heat using a low weight, high efficiency path from the GPU die to the wedgelocks.
Features
- NVIDIA RTX™ A4500E GPU with, 5888 CUDA Cores, 184 Tensor Cores, 46 RT Cores
- 4 DisplayPort/HDMI/DVI outputs
- 16 GB GDDR6 256-bit memory with up to 512 GB/s
- PCIe x16 Gen4 with a configurable PCIe switch
- Module power: 80-140W, configurable
