Z3 Technology is a leading manufacturer of IP camera and embedded video encoding systems. Our camera solutions product line features the latest in compression technology, with low latency H.265 and H.264 video encoding on dual or single camera systems.
Our flexible encoding solutions provide streaming and recording capabilities for visible and infrared cameras. Pass Camera Controls over IP with integrated controls from Sony, Flir, DRS, KTNC and Tamron. These systems are ideal for a wide range of unmanned systems that need to control both the camera and gimbal.
Featured products:
Lightweight Dual Camera Full HD Encoder:
Full HD Dual Camera SDI Video Encoder:
H.265 4K IP Camera:Dual Camera Encoders – Visible and IR

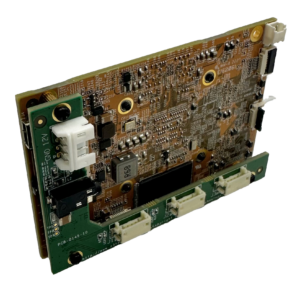

Dual Visible/IR Camera Encoder: FV2K-15A
Low-SWaP Full HD encoder for drone-based surveillance & industrial inspection
The FV2K-15A is a low-SWaP camera encoder with flexible digital and analogue input ports, featuring the ability to interface with two LVDS cameras or one LVDS and one composite. One camera can be an infrared or night vision system.
The compact unit draws just 4.5W of power, and can encode multiple channels of H.265 and H.264 video in HD resolutions, as well as supporting MJPEG compression. It allows simultaneous streaming over IP and recording to a microSD card.
Read more: FV2K-15A – Dual Visible/IR Camera Encoder
Full HD Dual Camera Encoder: FV2K-13A
Dual encoder supporting LVDS and composite cameras
The FV2K-13A is a lightweight camera encoder that can be interfaced with two LVDS cameras or one LVDS and one composite. One camera can be an infrared or night vision system, making the encoder ideal for round-the-clock UAV inspection and surveillance applications.
The compact unit draws just 4.5W of power, and can encode multiple channels of H.265 and H.264 video in HD resolutions, as well as being able to simultaneously stream over IP and record to a microSD card.
Read more: FV2K-13A – Full HD Dual Camera Encoder

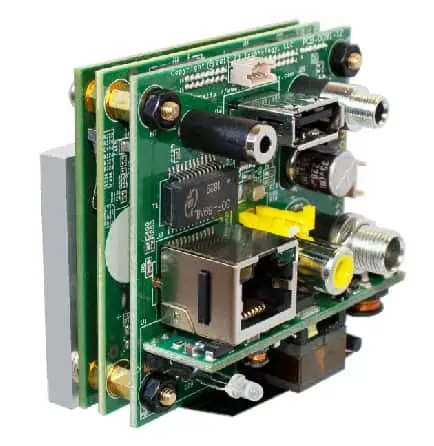

Dual 3G-SDI Camera Encoder: FSDI2-DCK-1x
Dual SDI Camera for UAV Inspections, Surveillance and Monitoring
The FSDI2-DCK-1x is designed for dual SDI camera inspection, surveillance, industrial and UAV applications. The flexibility of the system allows for two SDI cameras or a visible camera and an infrared or night vision camera.
The system is capable of encoding and streaming multiple channels of H.265 and H.264 video in HD resolutions.
Read more: FSDI2-DCK-1x – Dual 3G-SDI Camera Encoder

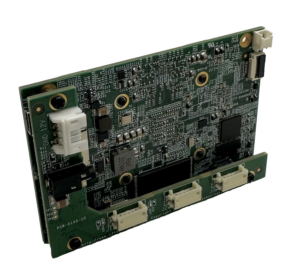

Full 4K Visible/IR Camera Encoder: FV4K-15A
Full 4K dual encoder supporting LVDS, HDMI and composite cameras
The FV4K-15A is a compact and lightweight dual camera encoder allowing both a 4K HDMI camera and a second LVDS or composite camera to be connected. It supports H.265 and H.264 encoding for both visible and thermal cameras.
The encoder allows simultaneous streaming over IP and recording to a microSD card, network file system or USB device, and can be controlled via a web interface, serial or SSH commands, a convenient API, or ONVIF.
Single Camera Encoders – Visible and IR

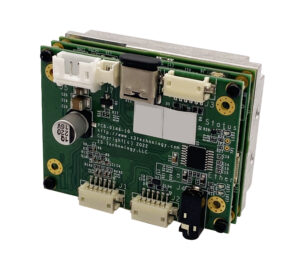

4K Visible/Thermal Single Camera Encoder: Q603-15
Small form factor encoding solution for visible or thermal cameras
The Q603-15 encoder provides H.265, H.264 and MJPEG encoding for HD and 4K cameras, providing full compatibility with leading visible and thermal models such as Sony FCB and FLIR Boson and Tau2.
The low-SWaP encoder features Wi-Fi connectivity and allows recording to a microSD card or network file system.
Read more: Q603-15 – 4K Visible/Thermal Single Camera Encoder

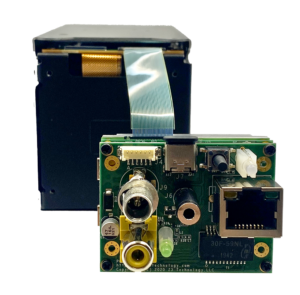

Compact H.265 4K Video Encoder: Z3-Q603-RPS
Complete H.265/HEVC and H.264 4K encoding solution
The Z3-Q603-RPS delivers low-latency encoding of H.265/HEVC and H.264 video at up to 4K resolution.
Measuring 50x40x38 mm and weighing just 43g, the Z3-Q603-RPS is Z3’s most compact video encoder and is ideal for UAV and robotics applications such as remote monitoring and surveillance.
The low-SWaP board provides a variety of interfaces, including GigE, RS-485, KEL connections for Sony 4K cameras and LVDS HD cameras, Micro-HDMI 1.4 input, Micro-HDMI output and composite video input.
IP Cameras with Sony Camera Blocks

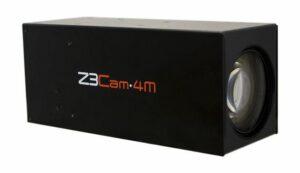

H.265 4K IP Camera: Z3Cam-4M
4K Encoding & IP Streaming for UAV and Drone Applications
The Z3Cam-4M™ H.265 IP camera provides 4K Ultra-HD video streaming over Gigabit Ethernet networks. The Z3Cam-4M combines video compression expertise from Z3 Technology with Sony’s proven 4K camera technology to provide the highest quality image at the lowest bandwidth, latency and power. This robust system brings clarity and detail to high movement and very low light conditions featuring 30x zoom with integrated auto focus.
Read More: Z3Cam-4M 4K IP Camera

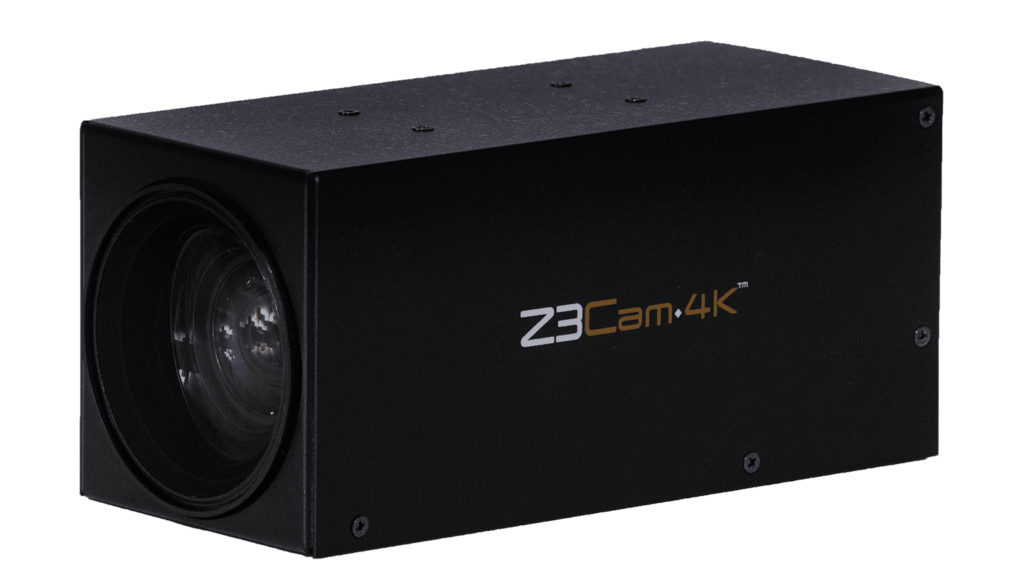

H.265 4K IP Camera: Z3Cam-4K Model: 8530
4K Encoding & IP Streaming for UAV and Drone Applications
The Z3Cam-4K H.265 IP camera provides 4K Ultra-HD video streaming over Gigabit Ethernet networks. This robust system brings clarity and detail to high movement and low light conditions featuring 30x zoom with integrated auto focus. Video with this clarity is a perfect fit for high detail data analytics, broadcast, medical, surveillance and more.
Read More: Z3Cam-4K IP Camera – Model 8530
